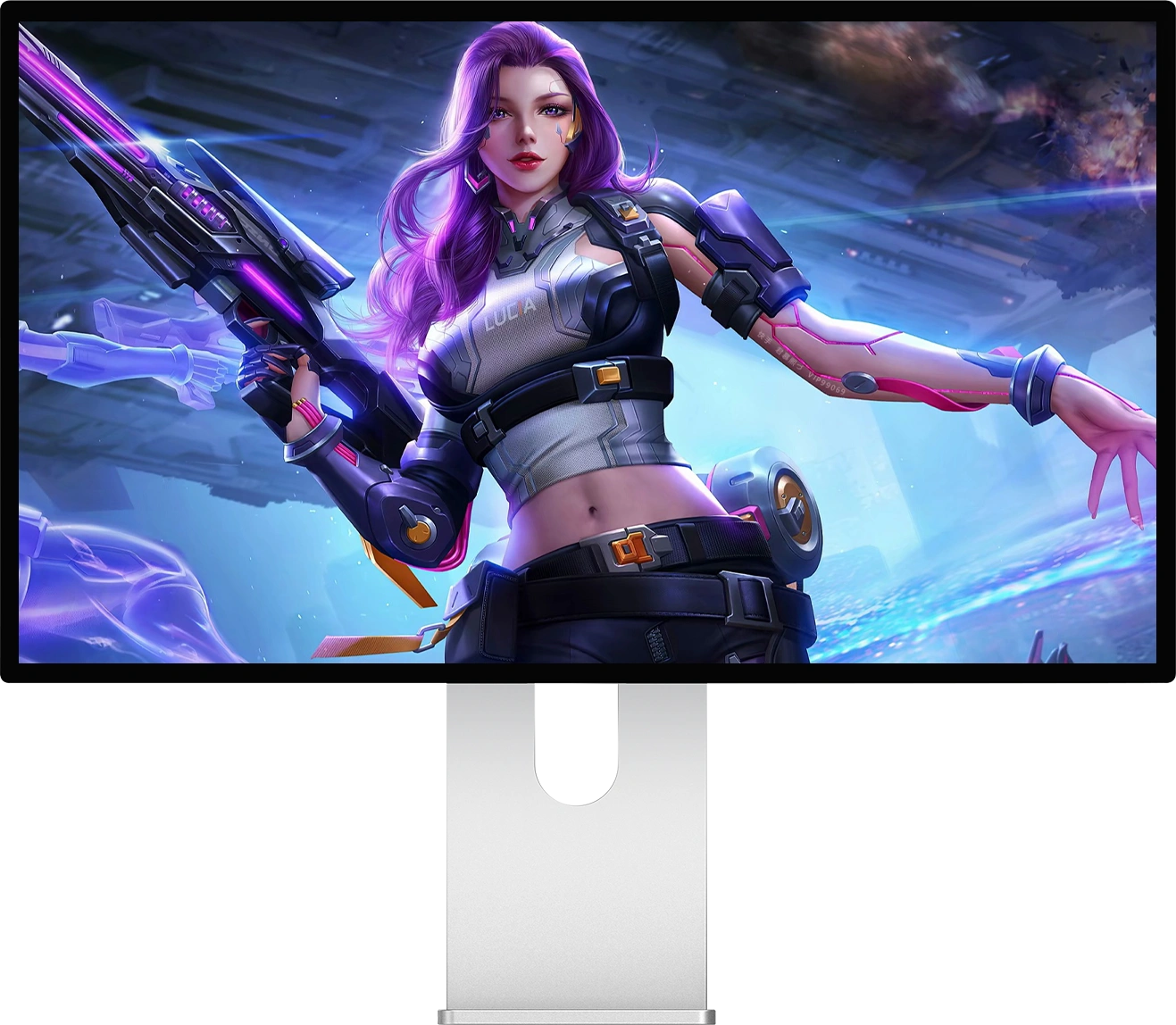

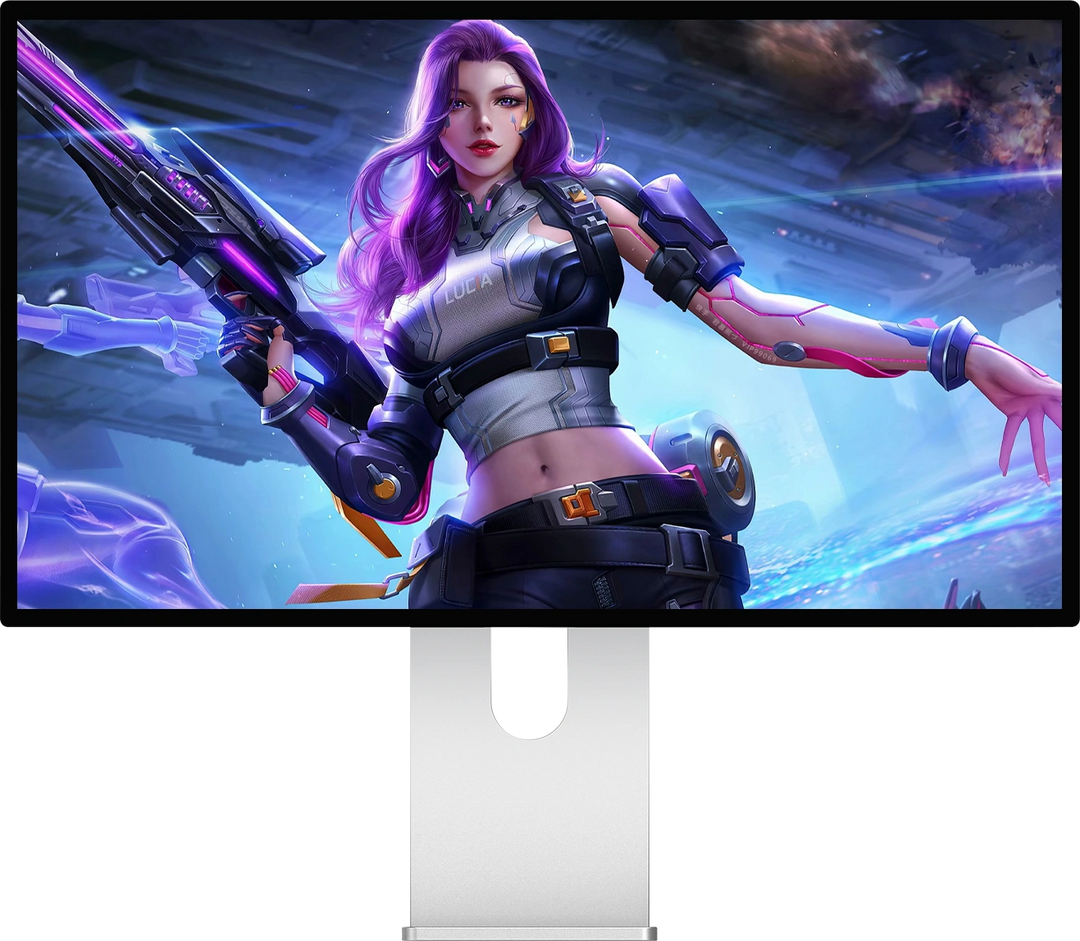

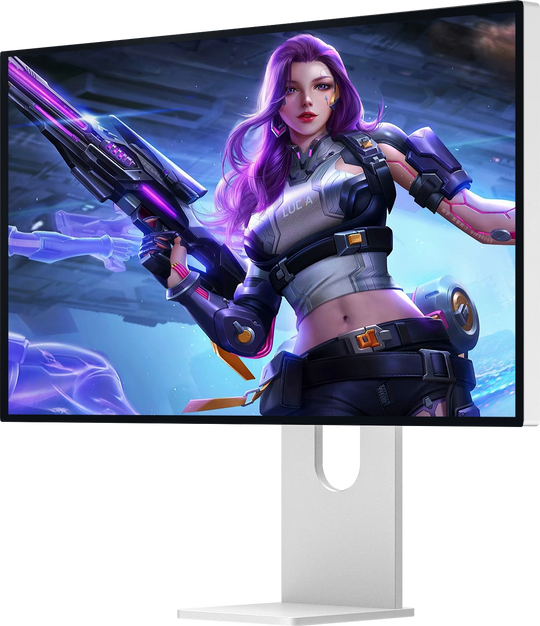

Kuycon P27Z 27" 5K Dual-Mode Gaming Monitor

Short Description

The Kuycon P27Z is built for players and creators who want both ultra-sharp 5K detail and high-refresh competitive speed. Its 27-inch UltraFast IPS panel delivers 5120 x 2880 resolution, 218 PPI density, 5K 180Hz performance, and 2K high-refresh mode up to 330Hz, with wide-gamut color, HDR600, modern full-bandwidth connectivity, and USB-C PD 100W power delivery.

Key Selling Bullets

• 27-inch 5K display with 5120 x 2880 resolution, 16:9 aspect ratio, and 218 PPI pixel density.
• Dual-mode refresh support: 5K 180Hz for sharp detail and 2K high-refresh mode up to 330Hz for competitive play.
• New-generation UltraFast IPS wide-gamut high-speed panel with GTG 1ms response time.
• Native obsidian optical compensation with full-lamination borderless mirror AR glass.
• 99% sRGB and 98% DCI-P3 color gamut, FRC 10-bit color depth, 1.07 billion colors, and Delta E < 2 factory color accuracy.
• Up to 600 cd/m2 full-screen brightness, 1500:1 contrast ratio, and HDR600 support.
• DP 2.1 UHBR20 80Gbps, USB-C 80Gbps, and HDMI 2.1 FRL 48Gbps connectivity with HDCP 2.3.
• USB-C upstream port supports video, data, and USB Power Delivery up to 100W.
• Compatible with Thunderbolt 4/5 and USB4 devices when the host device supports video output and required bandwidth.
• Built-in 6-unit dual-channel stereo speakers on the audio-equipped version.

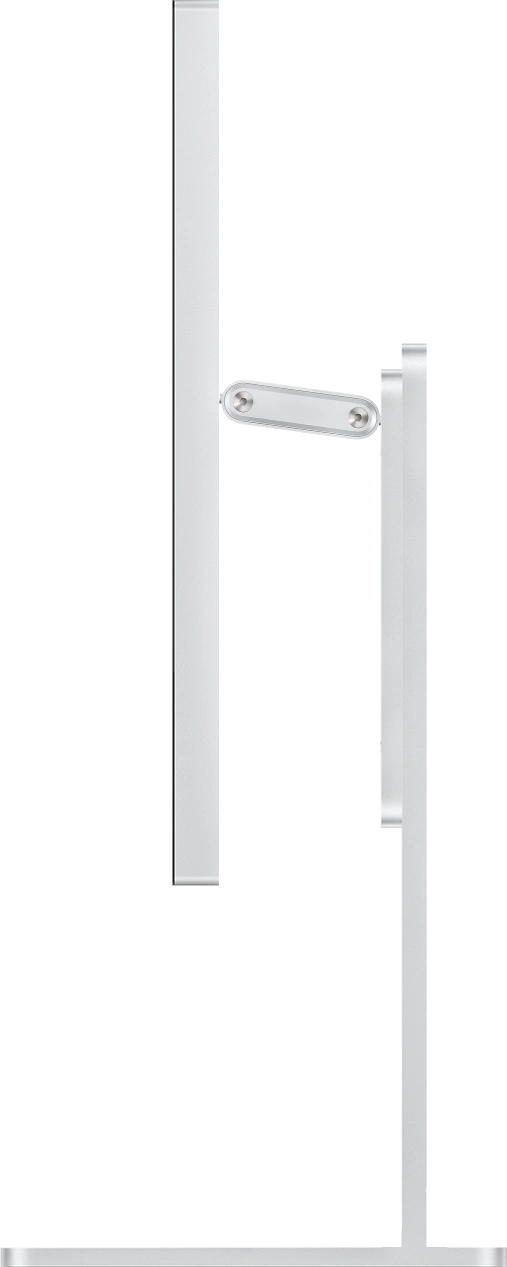

• Removable stand, VESA 100 x 100 mm mounting, height adjustment, and multi-angle rotation.
• CNC 6063 aluminum alloy body with anodized 180-grit sandblasted finish.

Full Product Description

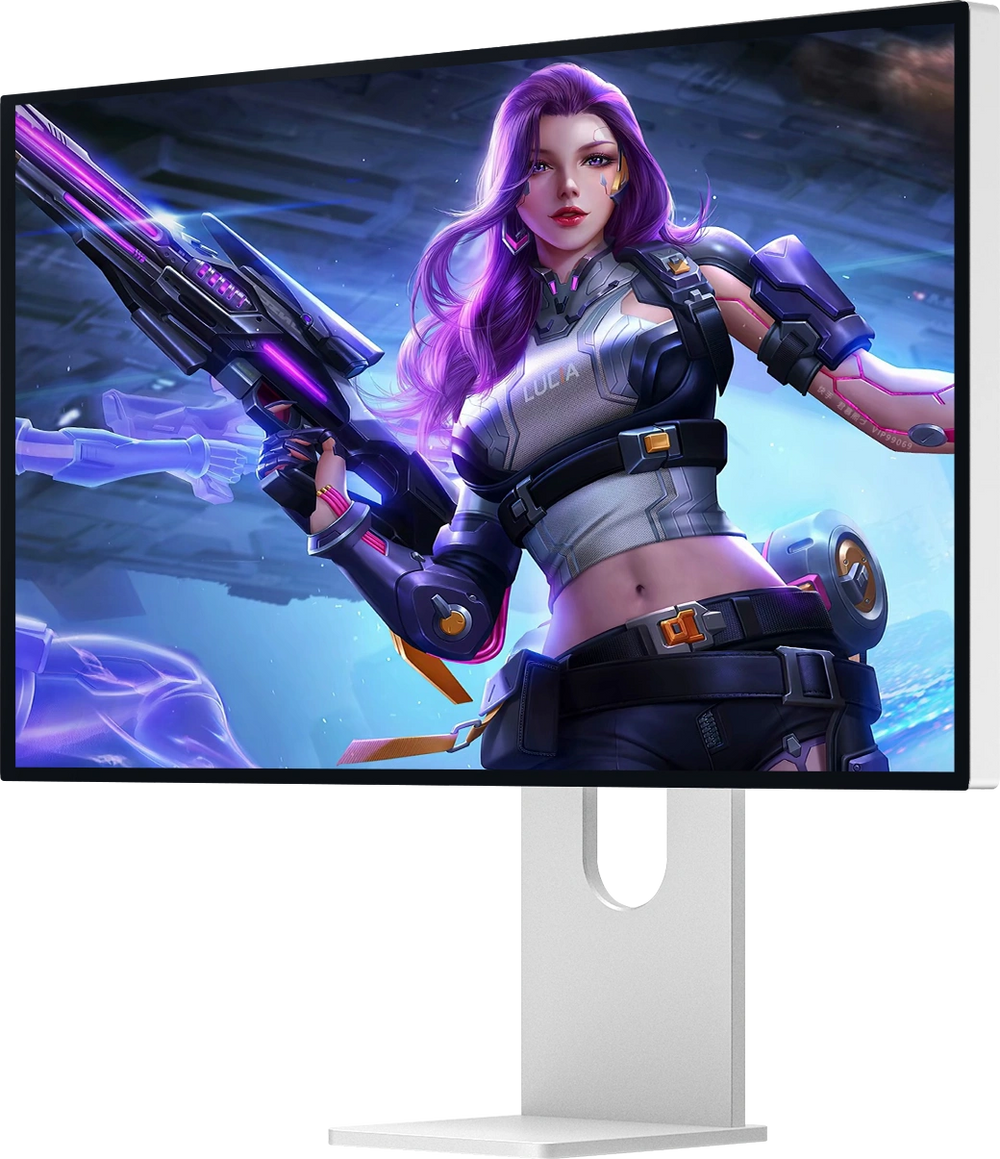

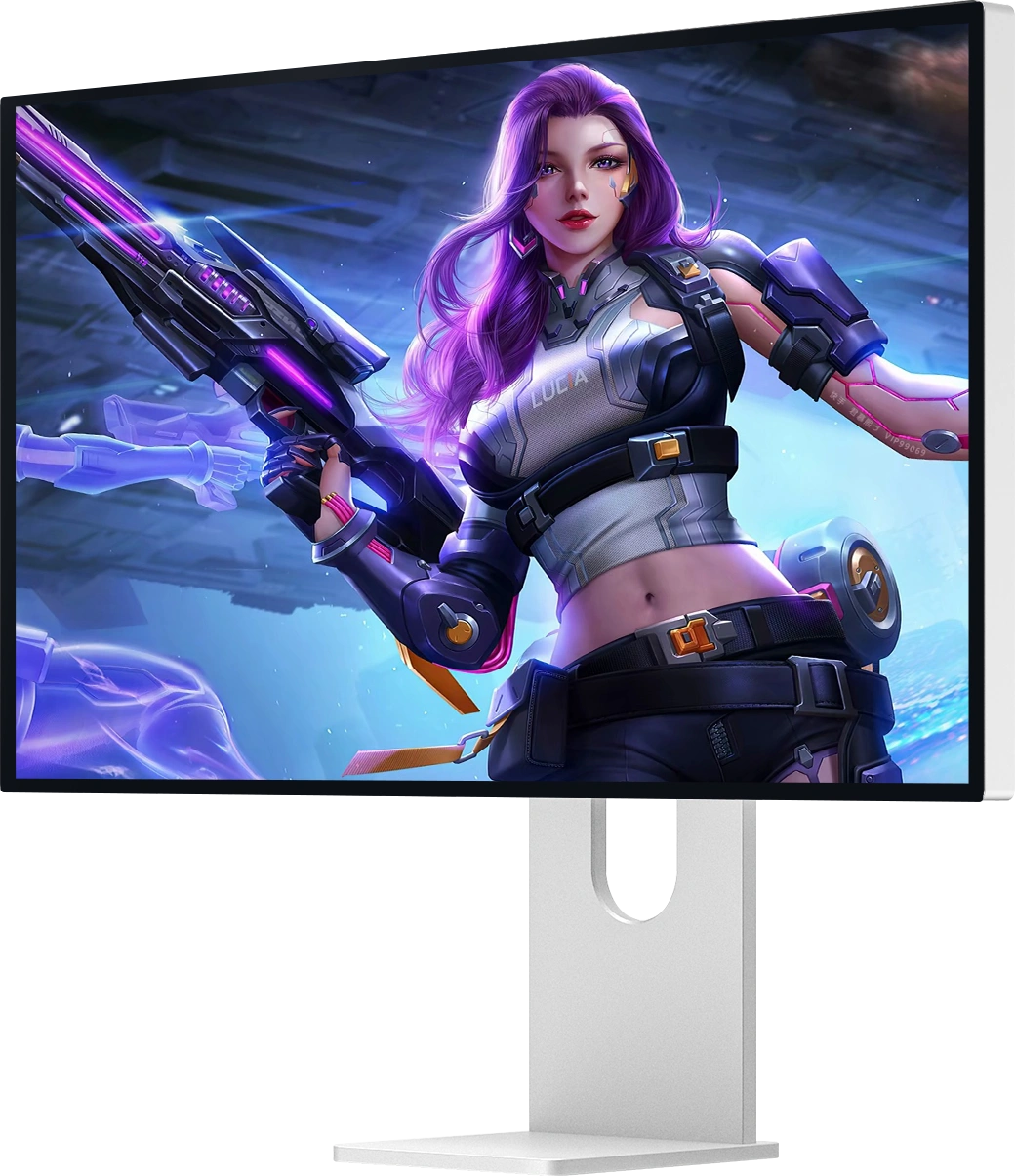

5K clarity. High-refresh speed.

P27Z brings flagship display performance to a 27-inch desktop format. With 5120 x 2880 resolution and 218 PPI pixel density, it delivers the fine detail expected from a true 5K display, while dual-mode refresh support gives you the flexibility to move from ultra-sharp 5K visuals to high-speed 2K competitive play.

Confirm the right version and setup before purchase.

For the best experience, match P27Z with the right hardware. 5K high-refresh operation requires a high-bandwidth connection and a compatible graphics card. DP and USB-C high-refresh 5K operation depends on DP 2.1 mode, DSC support, and the host device's output capability. The built-in speaker system applies to the audio-equipped version.

One monitor. Two performance modes.

Use 5K 180Hz when image detail matters most, from immersive games to content creation. Switch to 2K high-refresh mode when speed matters more, with refresh support up to 330Hz for faster motion and more responsive competitive gameplay.

Mirror AR glass with full lamination.

P27Z uses native obsidian optical compensation and a full-fit borderless mirror high-transmittance AR panel. The result is a cleaner front surface, improved light control, and a more refined premium display feel from edge to edge.

Wide-gamut color for games and creative work.

The UltraFast IPS panel supports FRC 10-bit color depth, 1.07 billion colors, 99% sRGB, and 98% DCI-P3 coverage. Delta E < 2 factory color accuracy helps keep color reproduction more precise for editing, design, video work, and visually rich games.

HDR600 brightness and strong native contrast.

With up to 600 cd/m2 full-screen brightness, HDR600 support, and a 1500:1 contrast ratio, P27Z is designed to show brighter highlights, controlled shadows, and stronger visual depth across games, movies, and everyday content.

A 5K workspace for serious creators.

The 27-inch 5K panel gives creators more room for timelines, tool panels, preview windows, and detailed editing work. High pixel density keeps text, UI, and image detail clean, making P27Z suitable for photo editing, 3D workflows, video production, and productivity.

Built-in audio for a cleaner desk.

The audio-equipped version includes built-in 6-unit dual-channel stereo speakers, reducing the need for separate desktop speakers and keeping your setup cleaner for gaming, films, and daily use.

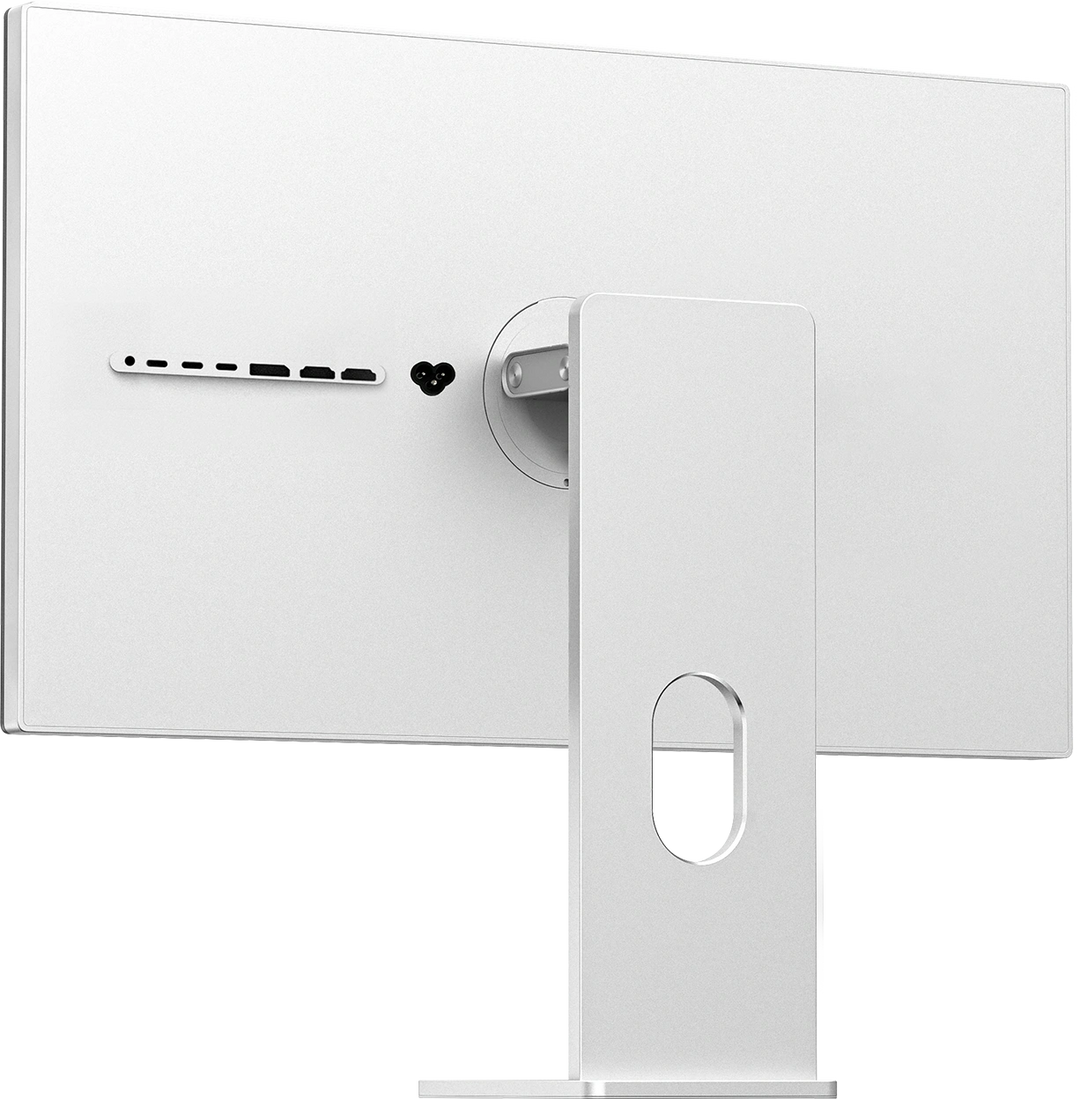

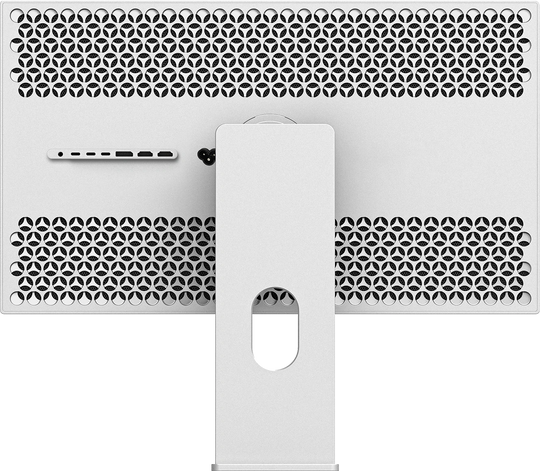

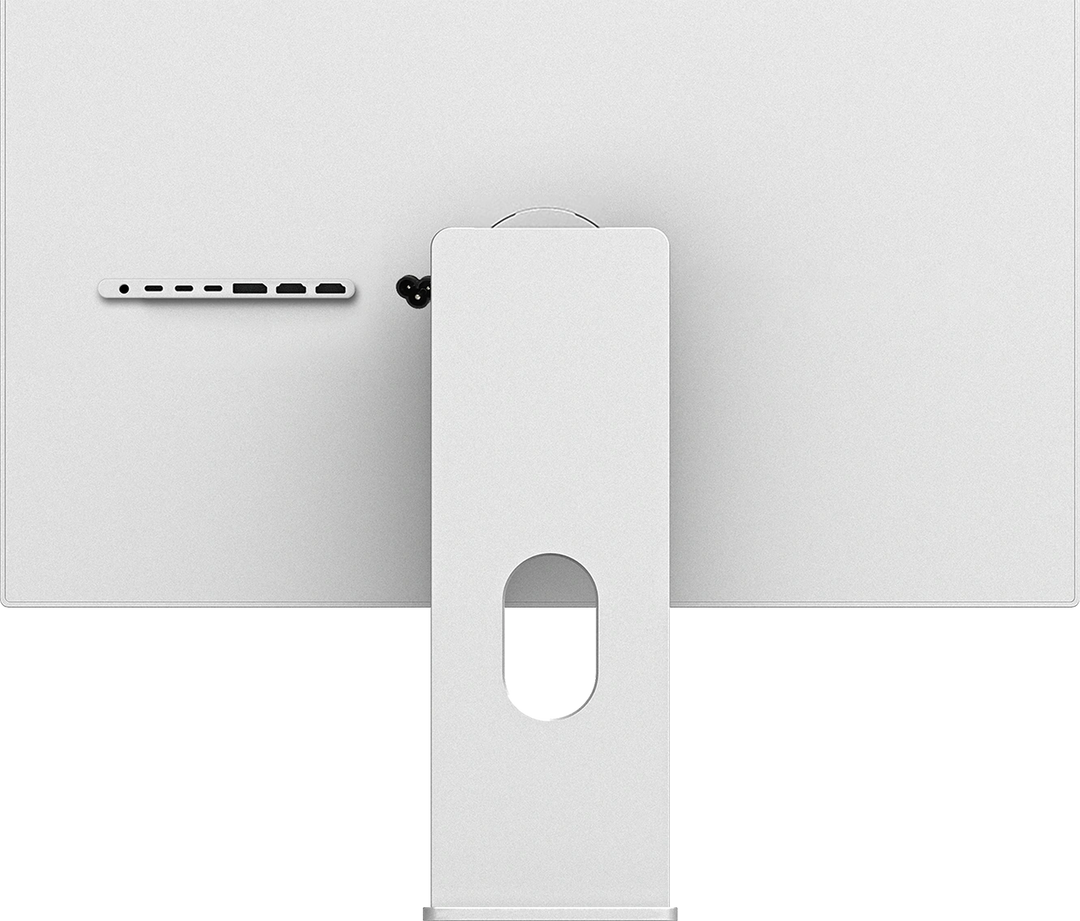

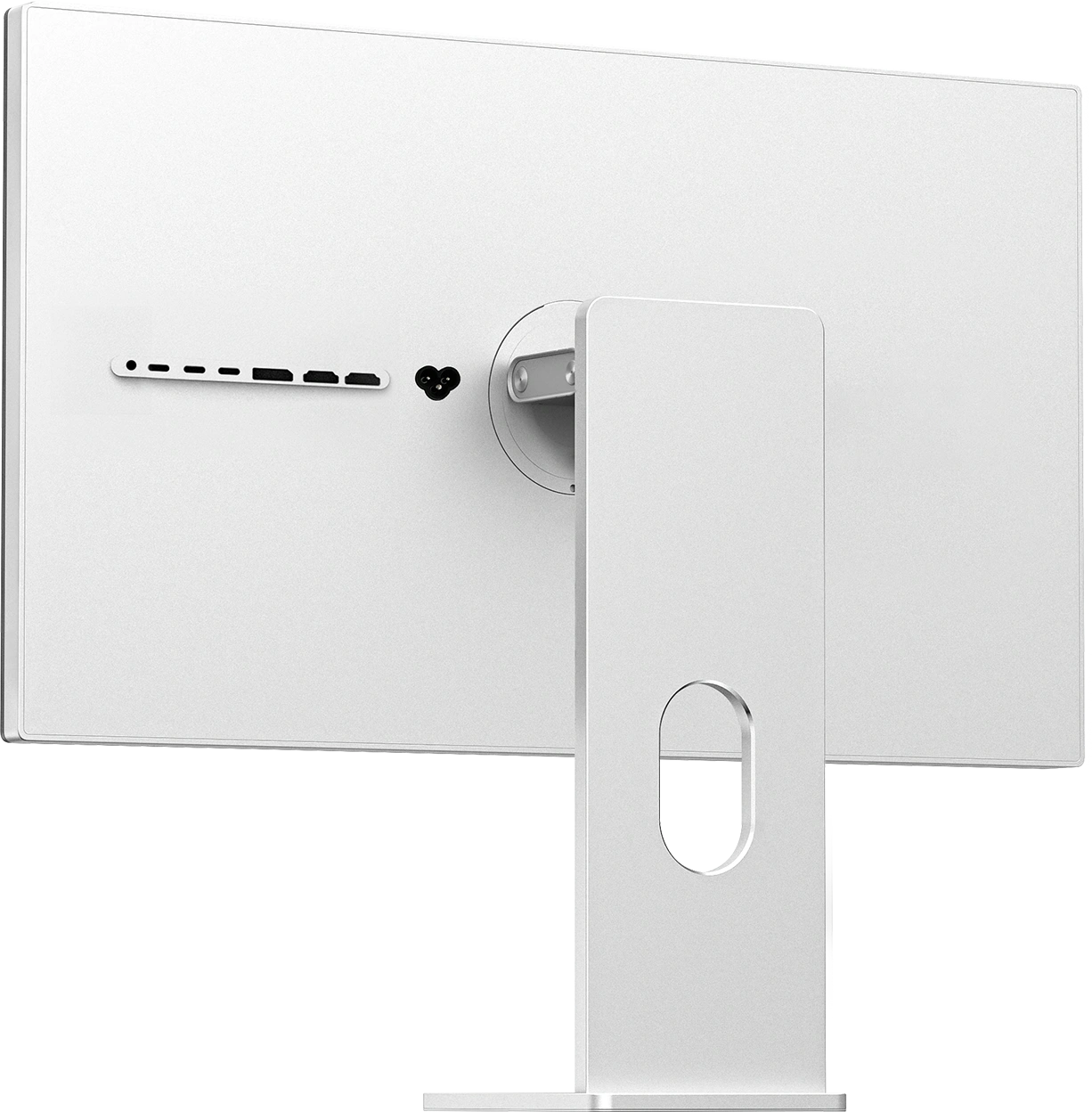

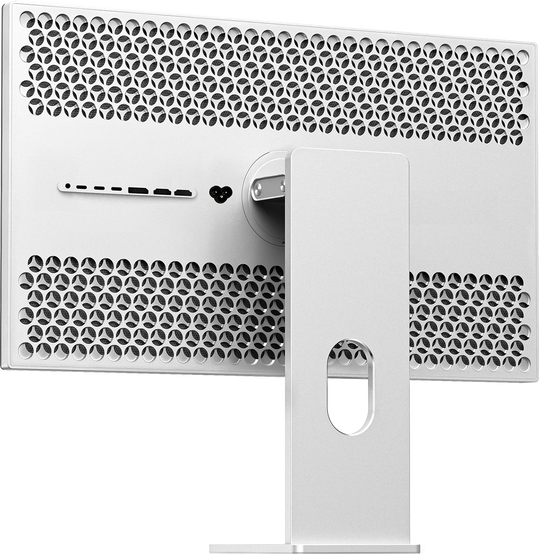

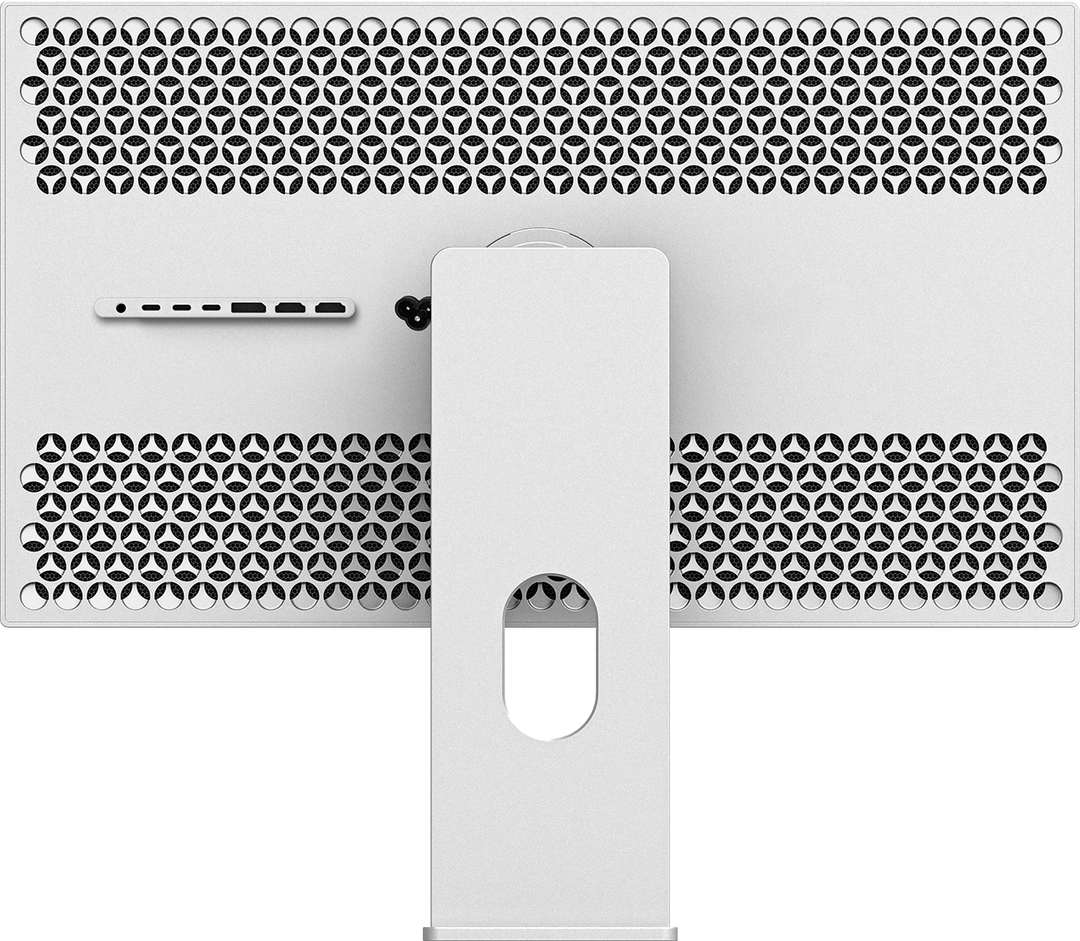

Full-bandwidth ports for modern devices.

P27Z includes a USB-C upstream port at 80Gbps, DisplayPort 2.1 UHBR20 at 80Gbps, and two HDMI 2.1 FRL 48Gbps ports. These ports support 5120 x 2880 high-refresh HDR input when used with compatible hardware and cables.

USB-C video, data, and PD 100W.

The full-featured USB-C upstream port supports DP Alt Mode video transmission, USB data, and USB Power Delivery. It can provide up to 100W reverse charging for compatible laptops while carrying display and data signals through one cable.

Essential cables and accessories included.

P27Z includes a 1.5m DisplayPort cable, 1.5m HDMI cable, 1m USB-C cable, 1.8m AC power cord, paper manual, USB-C OTG adapters x2, and infrared remote control. Use high-quality, high-bandwidth cables for best high-refresh 5K performance.

Technical profile.

P27Z combines a 27-inch UltraFast IPS panel, 5120 x 2880 resolution, 218 PPI, GTG 1ms response, 600 cd/m2 brightness, 1500:1 contrast, HDR600, 10-bit 1.07B color support, USB hub expansion, built-in power supply, VESA 100 x 100 mm mounting, and a 6063 CNC aluminum alloy body.

Specifications

Compatibility Notes

• 5K high-refresh performance requires a compatible GPU, operating system, cable, and port bandwidth.
• DP and USB-C can support 5K 165Hz via DP 1.4 HBR3 DSC, or higher bandwidth operation through DP 2.1 modes where supported.
• 5K 180Hz through DP or USB-C requires DP 2.1 operating mode and a GPU that supports the required DP 2.1 bandwidth.
• HDMI 2.1 FRL 48Gbps supports up to 5K 180Hz with compatible high-performance dedicated graphics hardware.
• USB-C video output depends on whether the host USB-C port supports DP Alt Mode and whether the connected GPU supports DP 1.4 DSC or higher.
• For USB-C 5K high-refresh operation, use reliable USB3.1 Gen2, USB3.2 Gen2, or USB4-class cables. For 100W PD charging, use a 5A cable with an E-marker chip.
• PS5, PS4 Pro, and Xbox Series consoles support up to 4K 120Hz HDR over HDMI where supported by the console and game.

FAQ

What is dual mode on the P27Z?

Dual mode lets the monitor prioritize either resolution or refresh rate. Use 5K 180Hz for sharp detail, or switch to 2K high-refresh mode for faster competitive gameplay.

Does P27Z support 5K 180Hz?

Yes, but 5K 180Hz requires compatible hardware. For DP or USB-C, the monitor must use DP 2.1 operating mode and the graphics card must support the required DP 2.1 bandwidth. HDMI 2.1 also requires a high-performance dedicated graphics card.

Why do some devices run 5K at 144Hz or 165Hz instead of 180Hz?

5K high-refresh output depends on the GPU, port, cable, operating system, and DSC support. Some devices may support 5K 144Hz or 5K 165Hz but not 5K 180Hz.

Can I use P27Z with a Mac?

Yes, P27Z is compatible with Thunderbolt 4/5 and USB4 devices when the Mac supports the required display output. Actual refresh rate depends on the model and GPU channel connected to the USB-C or Thunderbolt port.

Does USB-C support charging?

Yes. The USB-C upstream port supports USB Power Delivery up to 100W for compatible laptops, while also carrying video and data.

Does every version include speakers?

The user guide lists built-in 6-unit dual-channel speakers, and the product material distinguishes the audio-equipped version. Use the audio version if you want the built-in stereo speaker system.

Can I mount it on an arm?

Yes. P27Z supports VESA 100 x 100 mm mounting and has a removable stand.
