NESON NoryTek70 Mechanical Keyboard Kit

Start time: 29th Dec 2025 18:00EST
End time: 18th Jan 2025 23:59EST

‼️ Before purchase, you must read and accept following Terms and Conditions of the NoryTek70 Groupbuy‼️

1. This is a "Groupbuy" sale. Upon purchase, you acknowledge that estimated shipping time is Q3 2026,  and delay may occur due to but limited to conditions like: shipping delay introduced by any unforeseeable production issue.
2. After purchase, you will be charged immediately.
3. Due to the nature of "Groupbuy" sale that we will start to arrange production immediately after sale conclude, we generally do not allow cancellation. If you do need to cancel before GB ends, we review requests on a case-by-case basis at our discretion. If cancellation is accepted, a 4% payment processing fee will be withheld on refund.
4. We reserve the right to cancel orders which we deem violating our sale T&C.
5. This is a keyboard kit and does not come with switches and keycaps.

Note: The PC version cannot have its internal weight upgraded. This is because the PC version's rear weight is upgraded to stainless steel with a sandblasted and electroplated finish by default.

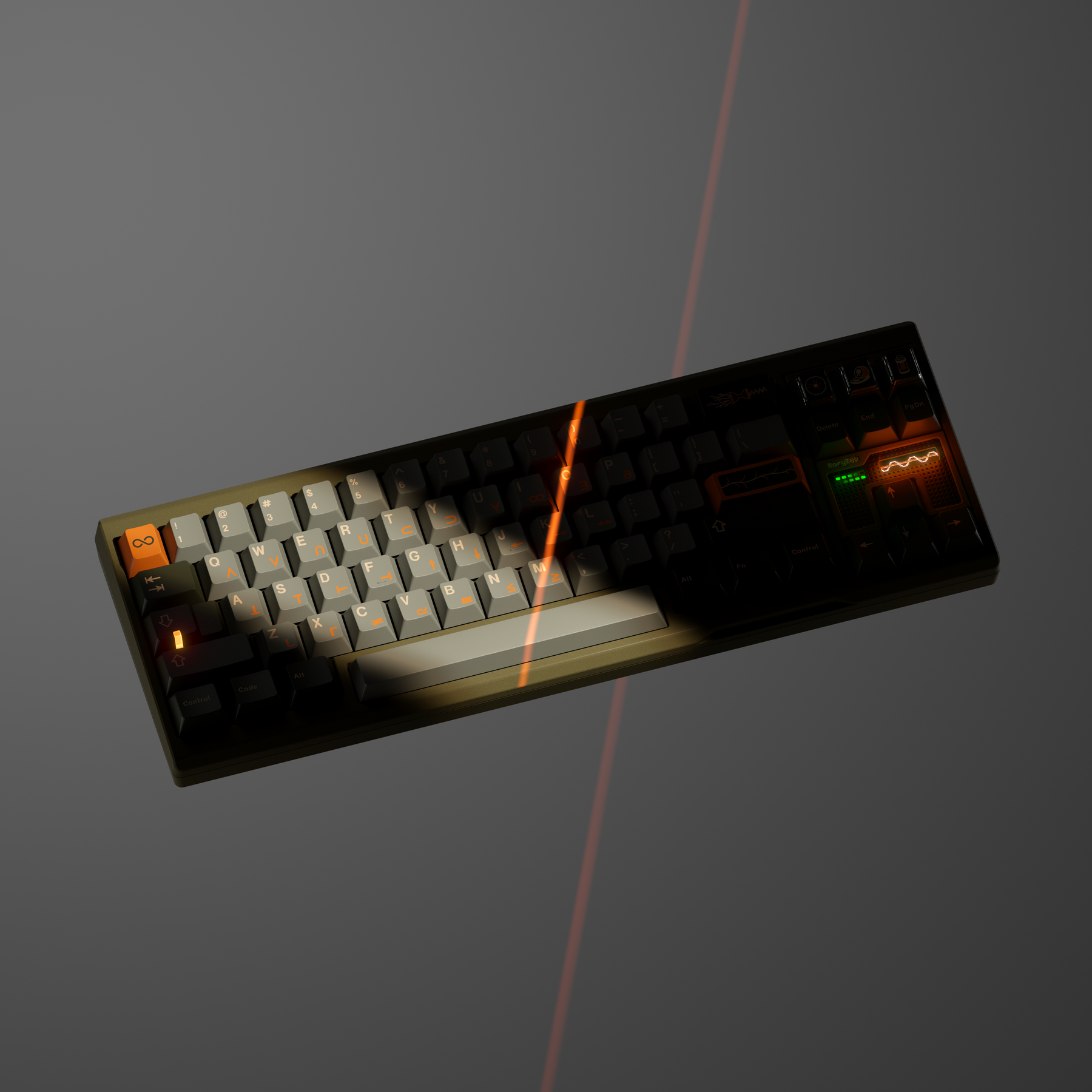

Retro Aesthetics, Modern Tech. The NoryTek 70% marks the debut of the "NoryTek Collection" by Neson Design. Blending a clean-tech industrial look with Neson's signature isolated spacebar layout, this board creates a visual rhythm that breaks away from rigid uniformity.

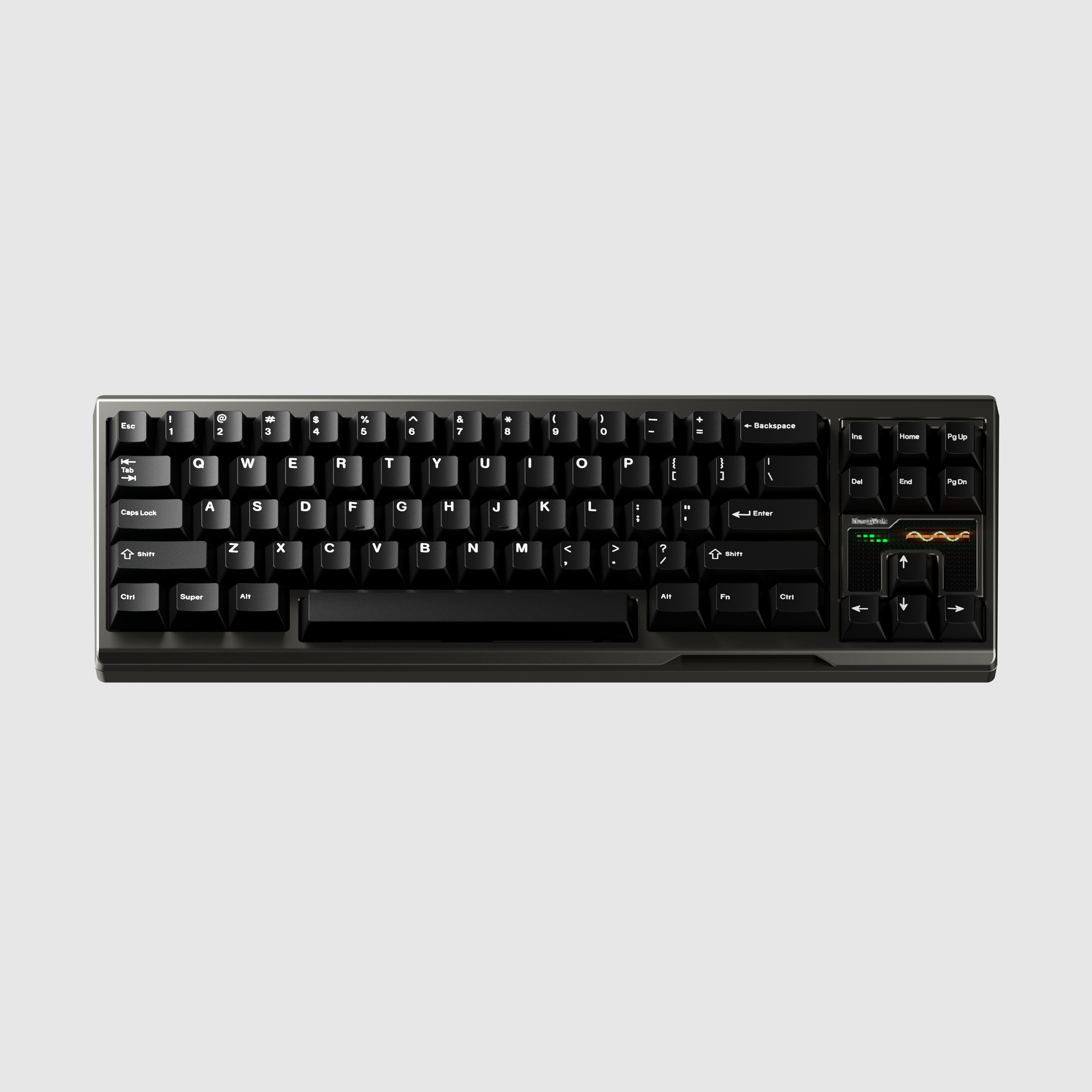

The design features a unique asymmetrical structure where the arrow and navigation cluster sits slightly lower than the main alpha block. This is accented by a functional "Command Center" featuring a 2x5 dot-matrix light alongside a 160×40px customizable LCD screen.

Key Features

• Signature Layout: A 70% form factor with Neson's distinct isolated spacebar, striking the perfect balance between compact aesthetics and functional utility.

• Interactive Display: Features a split badge area with a retro dot-matrix LED block (left) and a fully programmable LCD screen (right) for animations and system info.

• Precision Machining: The small weight accents feature a complex "waffle-pattern" grid design, with 1mm squares machined for a premium industrial texture.

• Leaf Spring Gasket Mount: Designed for a comfortable, consistent typing feel.

Technical Specifications

• Layout: 70% (WK or WKL options) with Isolated Spacebar

• Structure: Leaf Spring Gasket Mount

• Typing Angle: 8°

• PCB: 1.6mm Hot-swappable (Black Core)

• Plate: 1.5mm Aluminum (Black Gloss finish)

• Connection: 4-pin Aviation Connector (0B) (1.5m silver-plated cable included)

• Dimensions: 359.5mm x 125.5mm (Front Height: 19.22mm)

Available Versions & Colors

Aluminum Editions:

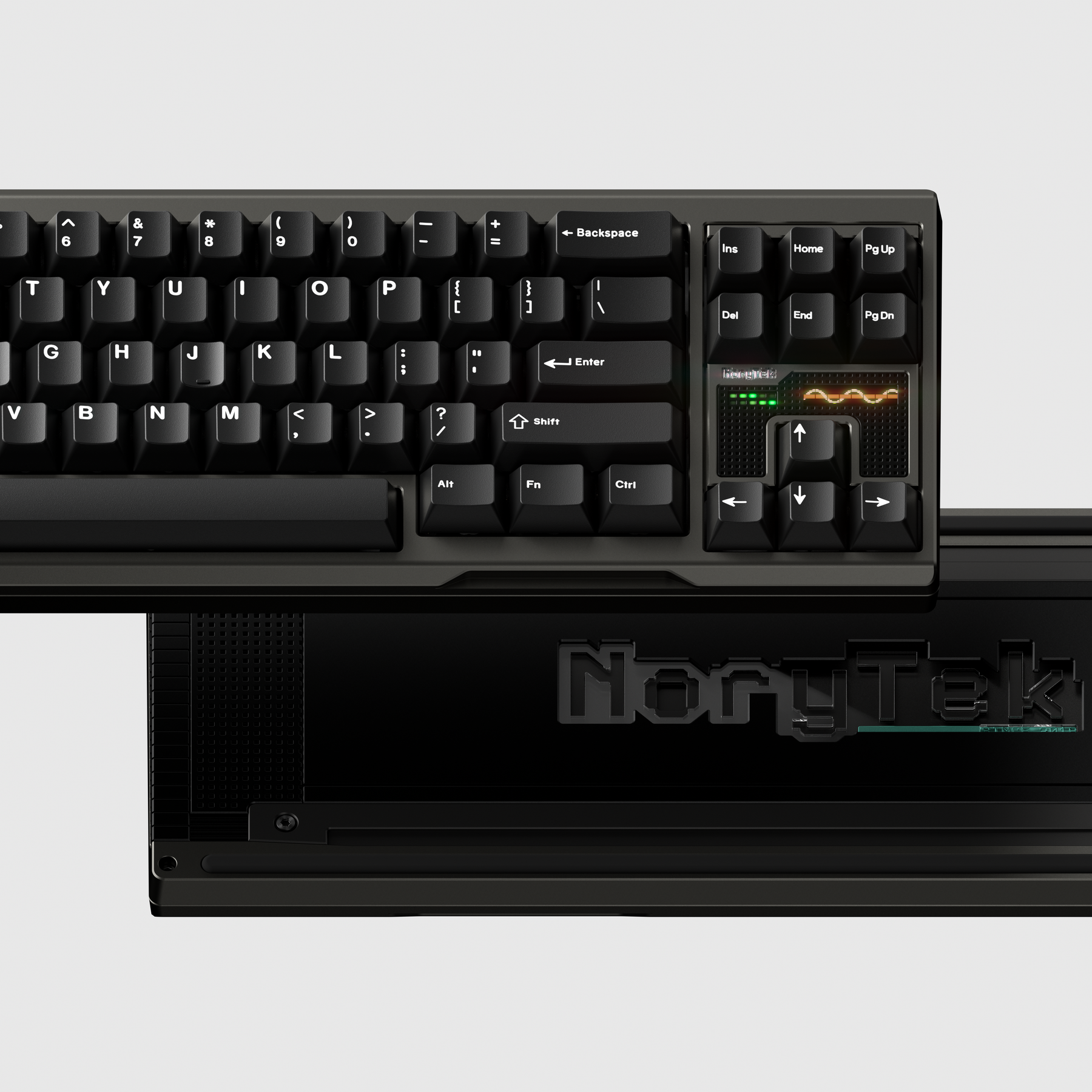

• Desert Gray:

●Top and bottom case: Anodized gray-blue
●Left and right side accessories: Anodized black
●Left and right small grid weights: Anodized black
●Large weight: Anodized black
●Top and bottom long strip weights: Black sandblasted stainless steel

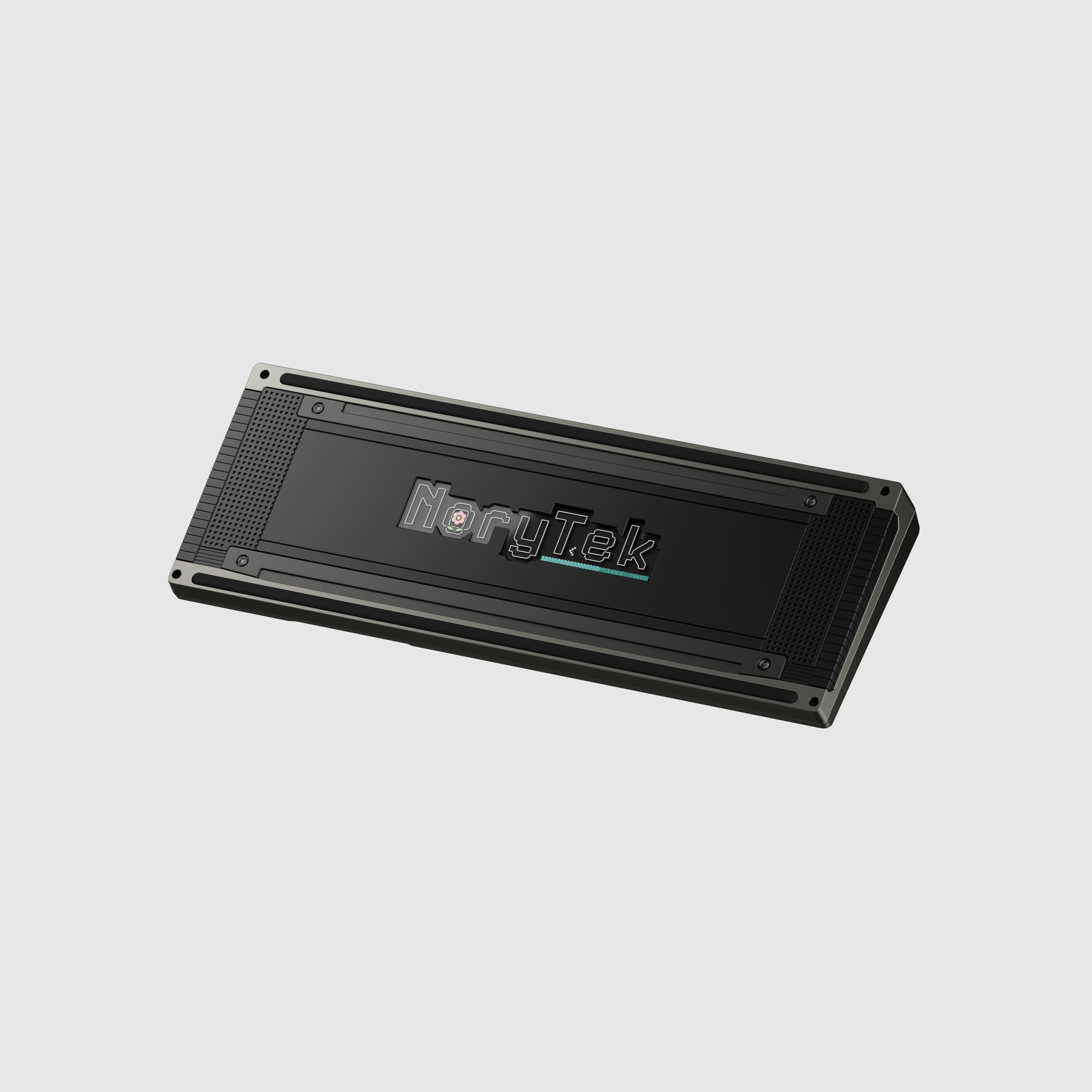

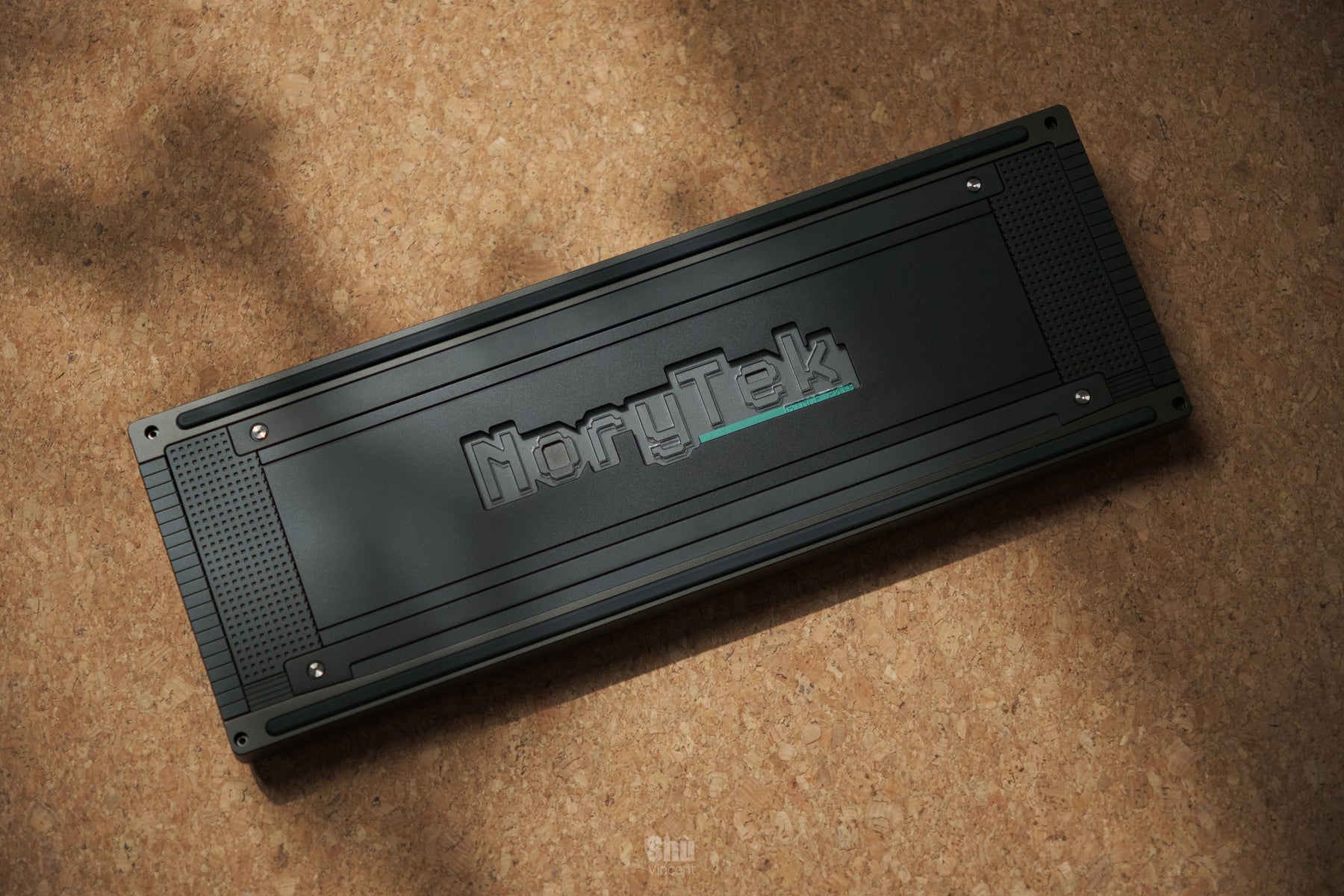

●NoryTek weight: Black sandblasted stainless steel

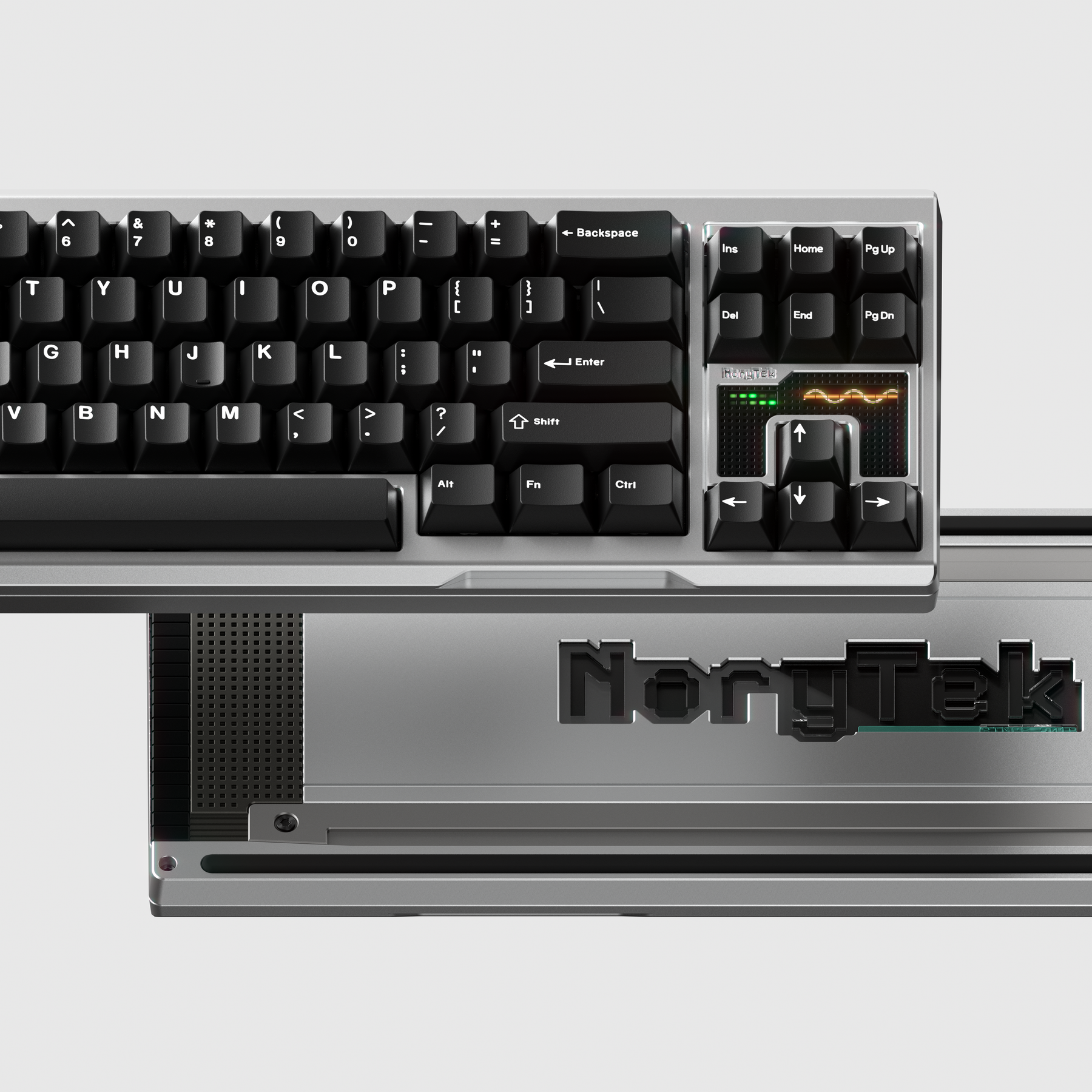

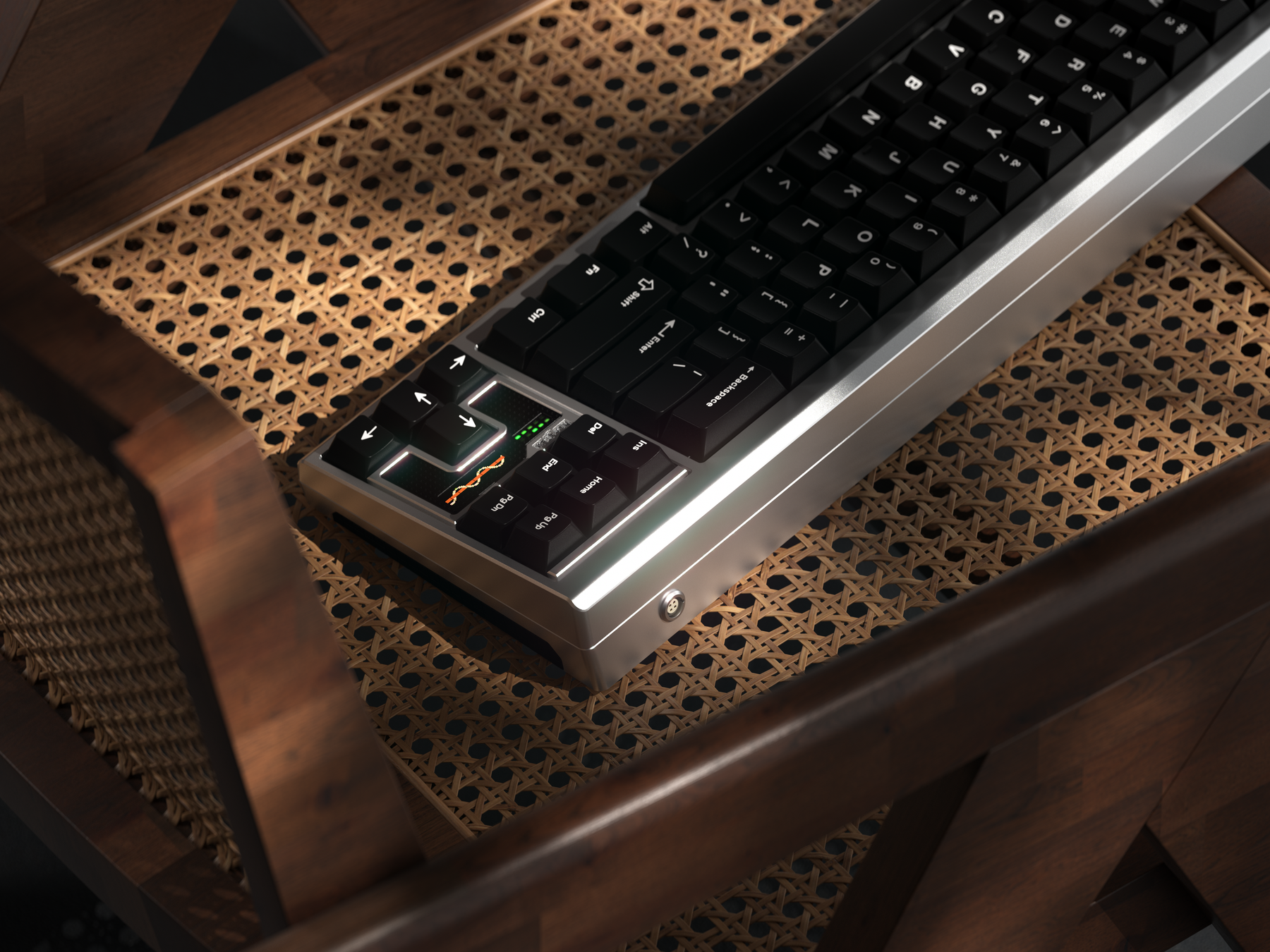

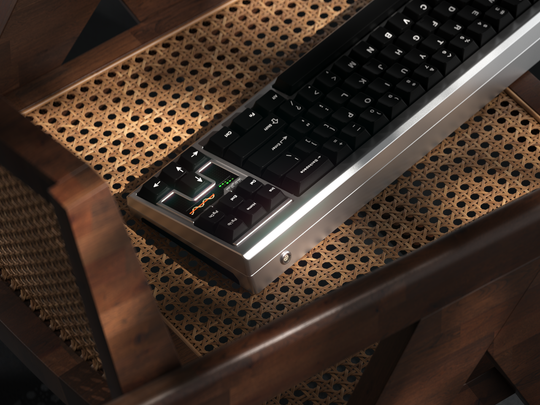

• Moonlight Silver:

●Top and bottom case: Anodized Silver
●Left and right side accessories: Anodized black
●Left and right small grid weights: Anodized black
●Large weight: Anodized black
●Top and bottom long strip weights: Black sandblasted stainless steel
●NoryTek weight: Black sandblasted stainless steel

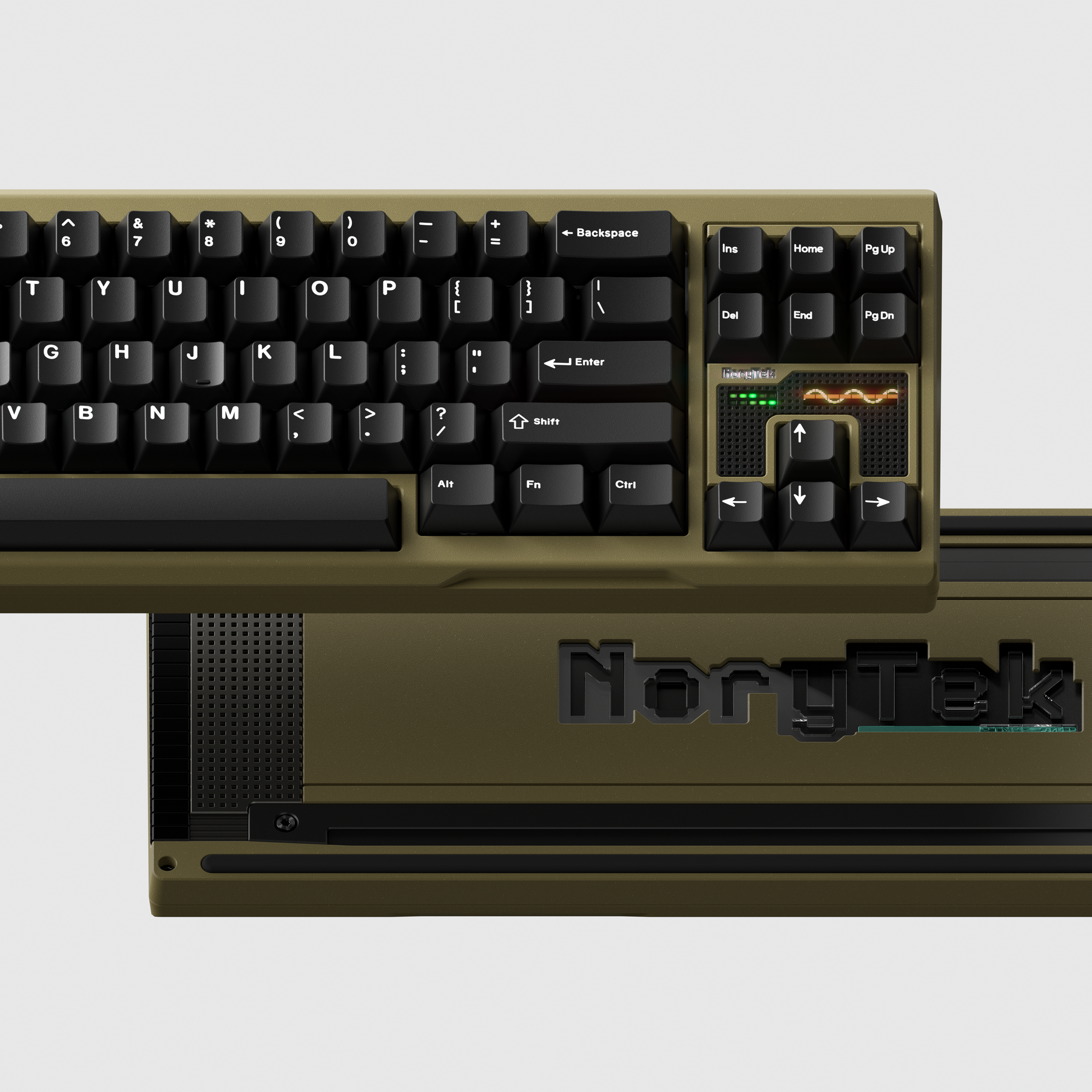

• Retro Green:

●Top and bottom Case: Graphite green coating
●Left and right side accessories: Black gloss coating
●Left and right small grid weights: Anodized gray
●Large weight: Graphite green coating
●Top and bottom long strip weights: Black sandblasted stainless steel
●NoryTek weight: Black sandblasted stainless steel

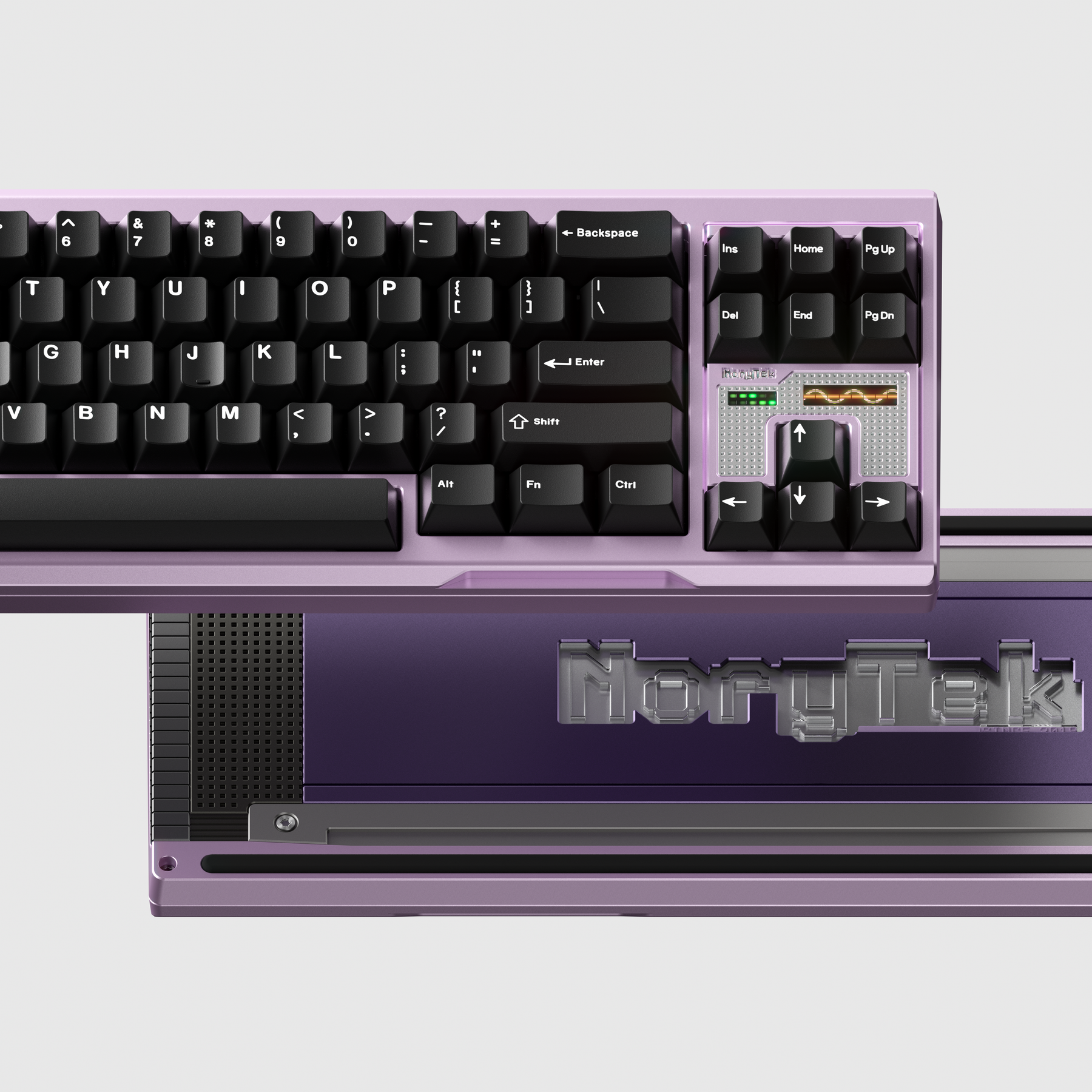

• Sakura Pink: Anodized Pink case / Black accents

●Top and bottom Case: Anodized Pink
●Left and right side accessories: Anodized Gray
●Left and right small grid weights: Anodized Dark Gray
●Large weight: Anodized Purple
●Top and bottom long strip weights: Silver sandblasted stainless steel
●NoryTek weight: Silver sandblasted stainless steel

Polycarbonate Edition:

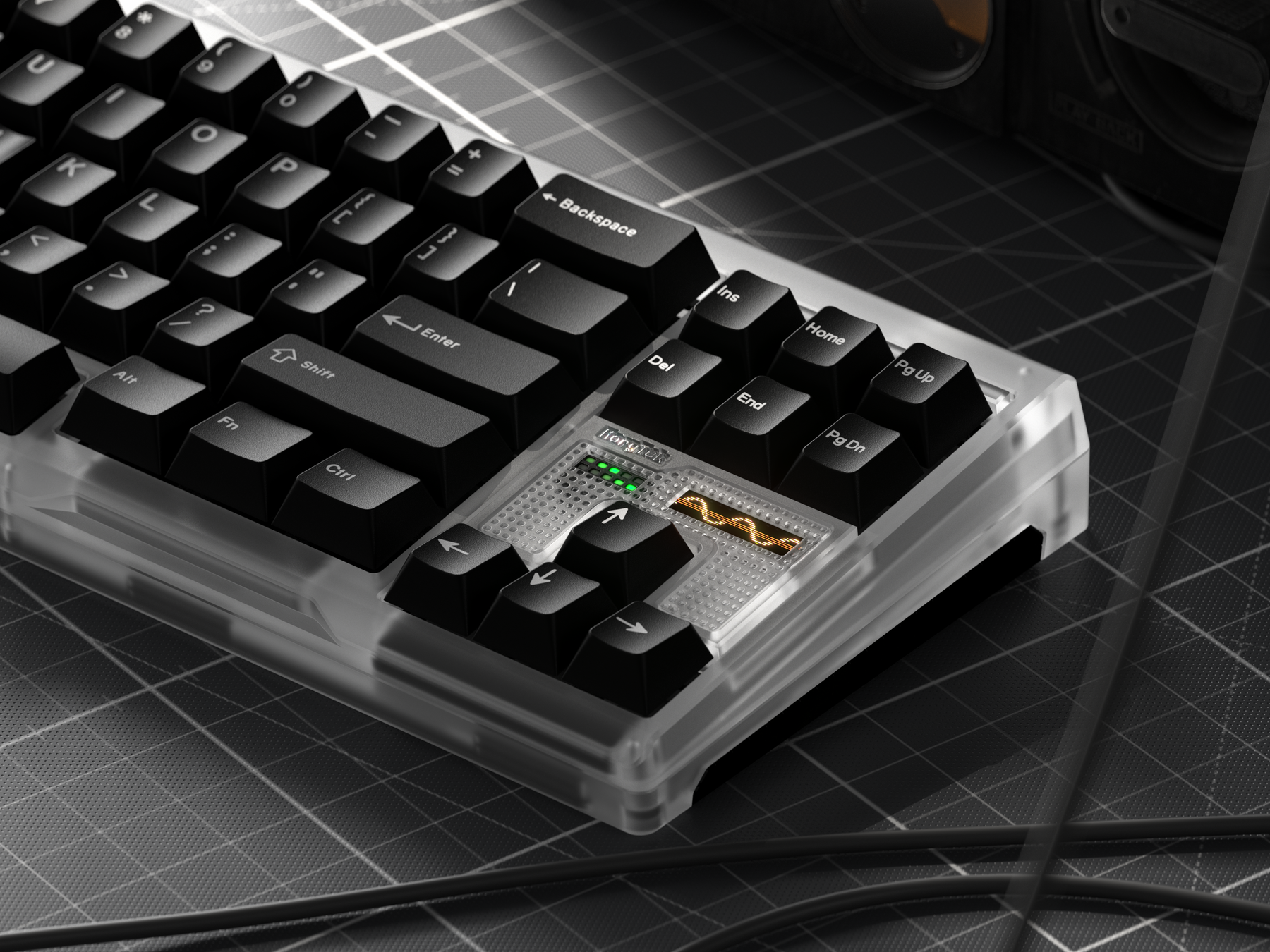

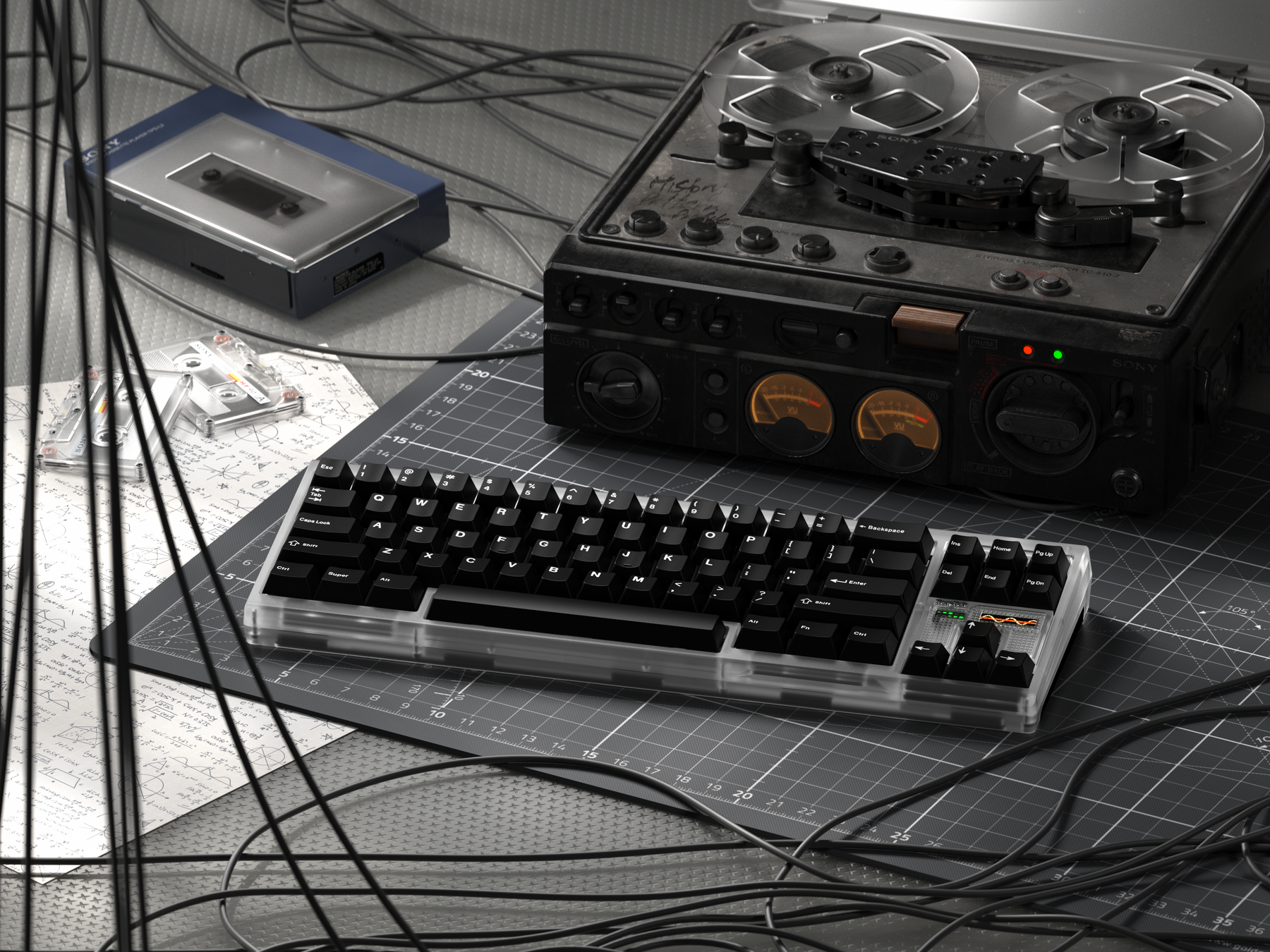

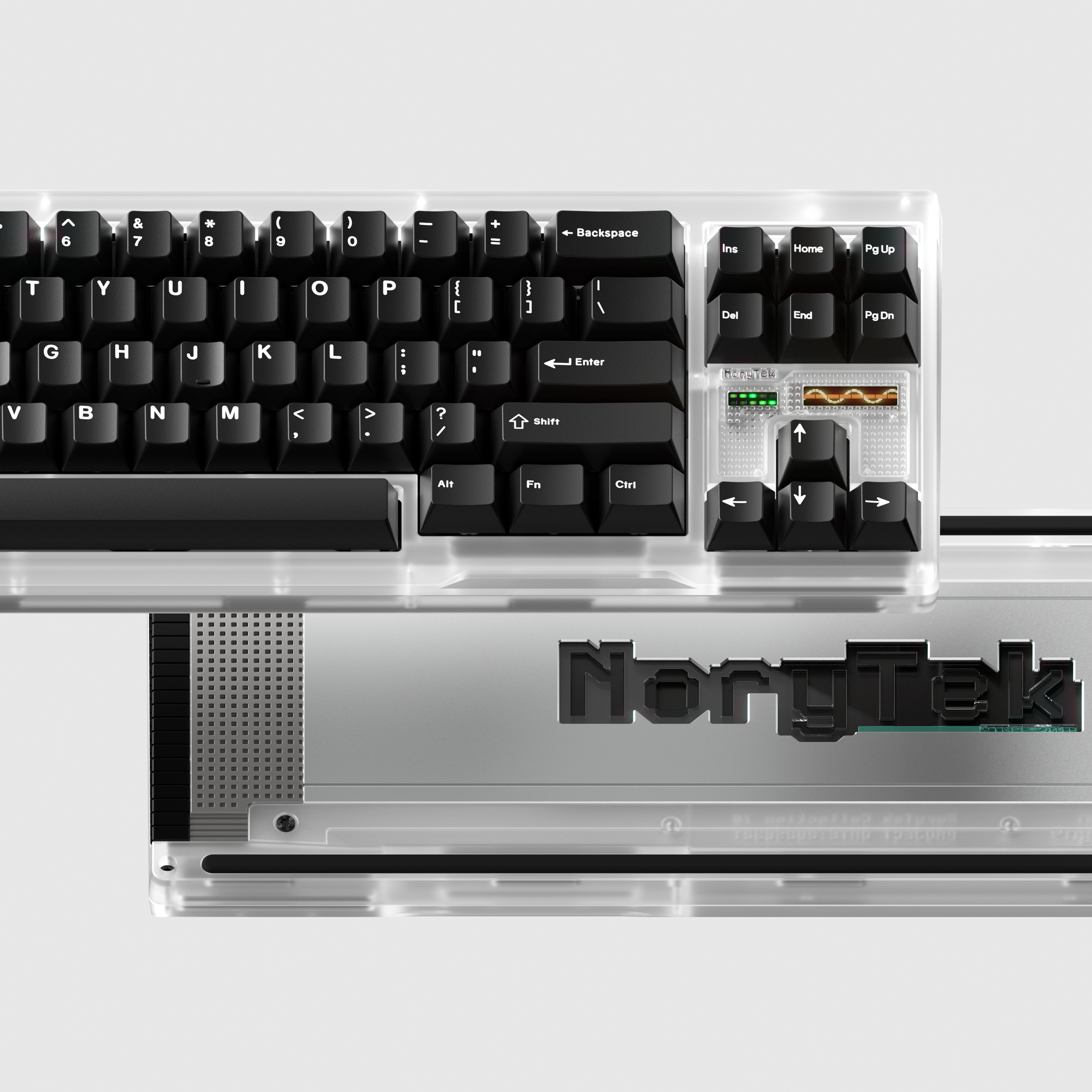

• P2K (PC Version): Fully transparent Polycarbonate top/bottom case with Silver Sandblasted Stainless Steel internal weight.

●Top and bottom case: PC
●Left and right side accessories: Anodized black
●Left and right small grid weights: Anodized gray
●Large weight: Silver sandblasted stainless steel
●Top and bottom long strip weights: PC
●NoryTek weight: Black sandblasted stainless steel

What’s Included

• Keyboard Case (Top/Bottom)

• Internal Weight (Alu or Stainless Steel depending on variant)

• PCB (WK or WKL specific) & Daughterboard

• Aluminum Plate

• LCD Screen & Dot Matrix Module

• 0B Aviation Cable

Important Note on PCBs: Due to the isolated spacebar design, the WK and WKL layouts require different PCBs. Please ensure you select the correct version, as they are not cross-compatible.

Differences between NoryTek 70 Ver.3 and the reviewed version Ver.2 are as follows:
1.The connection mode of the screen sub-board to the main board in Ver.3 has been changed from pogo pin connection to FPC cable connection. (Using magnetic connectors such as pogo pins between the screen sub-board and PCB main board may easily cause disconnection, or occasionally lead to unstable power supply and signal transmission issues.
2.Modified the shape of the upper long counterweight.
3.Modified the internal logo engraving.
4.Adjusted the thickness and hardness of the integrated silicone foot pad at the bottom.
