[GB/Pre-Order] Syrin TKL Mechanical Keyboard Kit

Start time: 15th Nov 2025, 20:00 EST
End time: 15th Dec 2025, 23:59 EST

‼️ Before purchase, you must read and accept following Terms and Conditions of the Syrin TKL Groupbuy/Pre-Order‼️

1. This is a "Groupbuy/Pre-Order" sale. Upon purchase, you acknowledge that estimated shipping time is Q1 2026,  and delay may occur due to but limited to conditions like: shipping delay introduced by any unforeseeable production issue.
2. After purchase, you will be charged immediately.
3. Due to the nature of "Groupbuy/Pre-Order" sale that we will start to arrange production immediately after sale conclude, we generally do not allow cancellation. If you do need to cancel before GB/Pre-Order ends, we review requests on a case-by-case basis at our discretion. If cancellation is accepted, a 3% payment processing fee will be withheld on refund.
4. We reserve the right to cancel orders which we deem violating our sale T&C.
5. This is a keyboard kit and does not come with switches and keycaps.

Expected Shipping time: Q1 2026

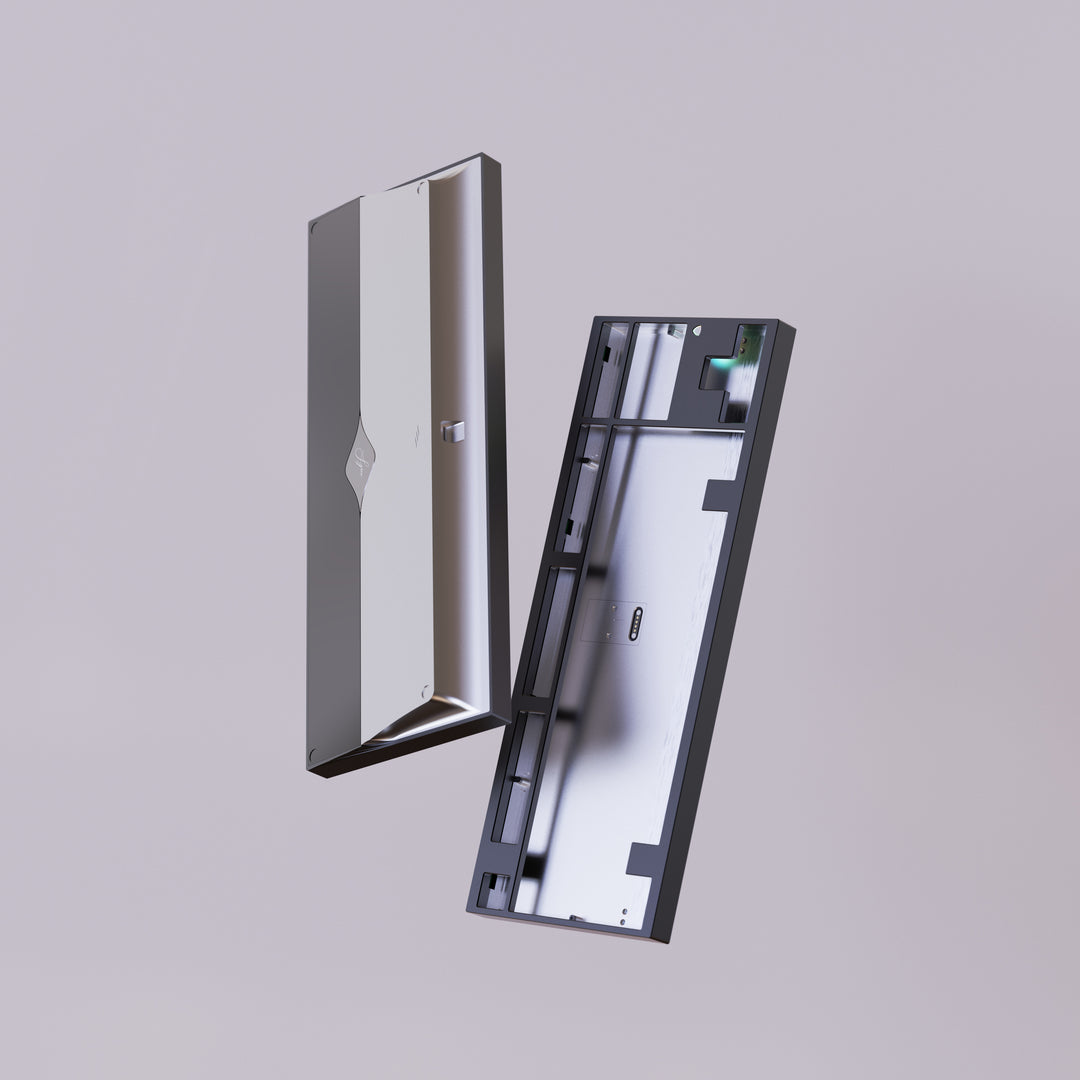

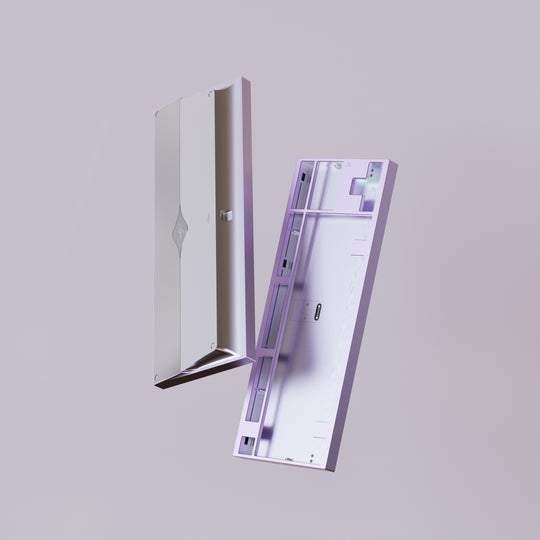

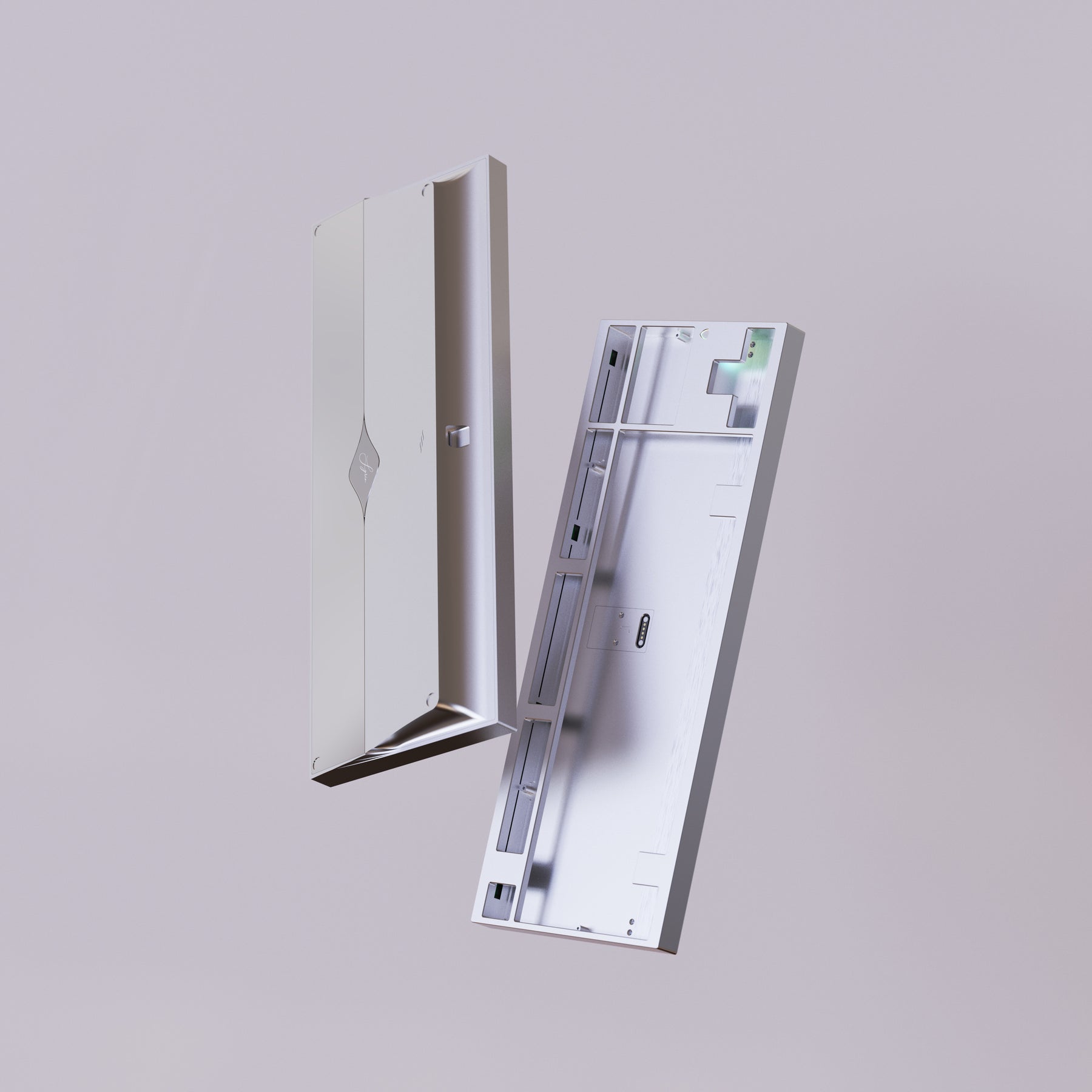

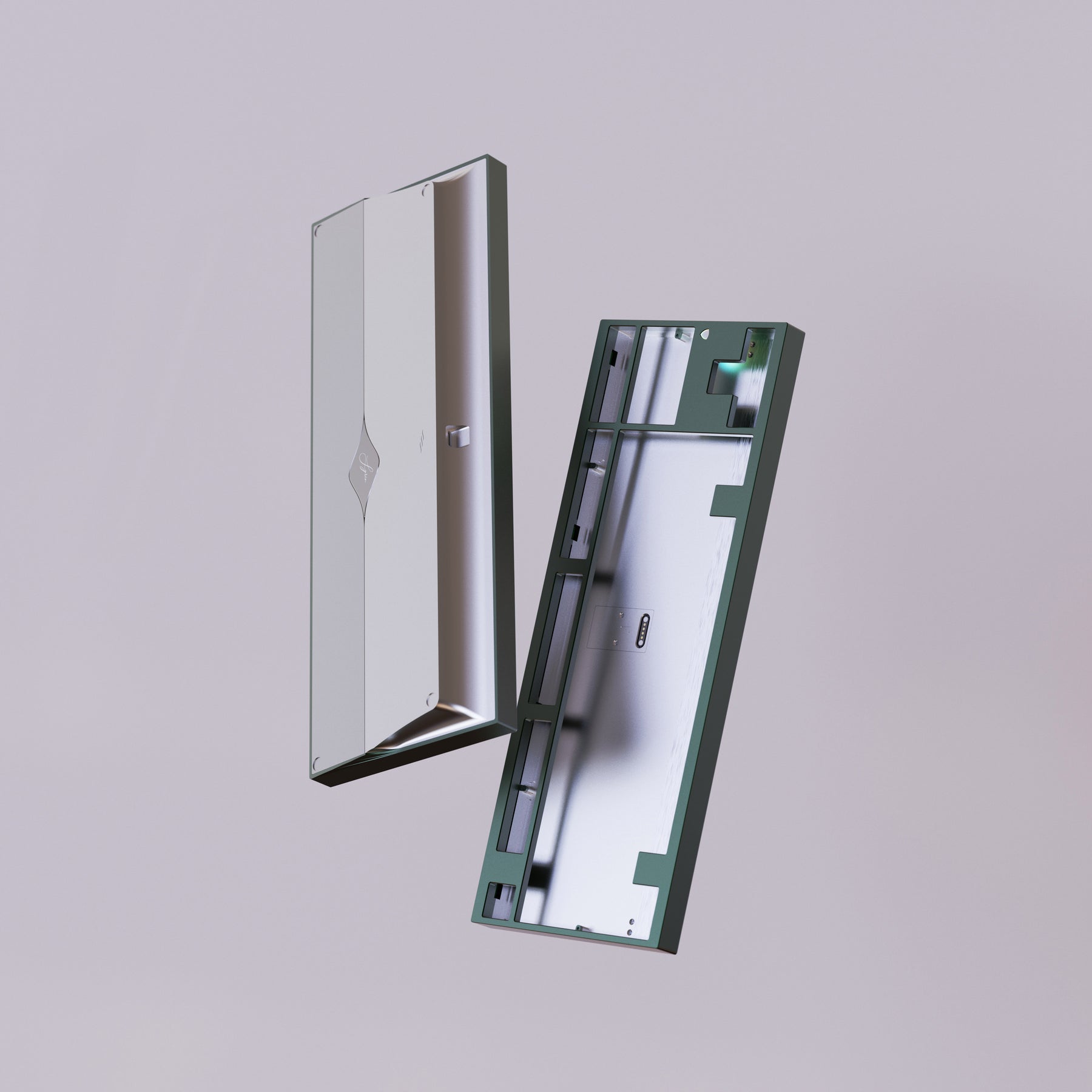

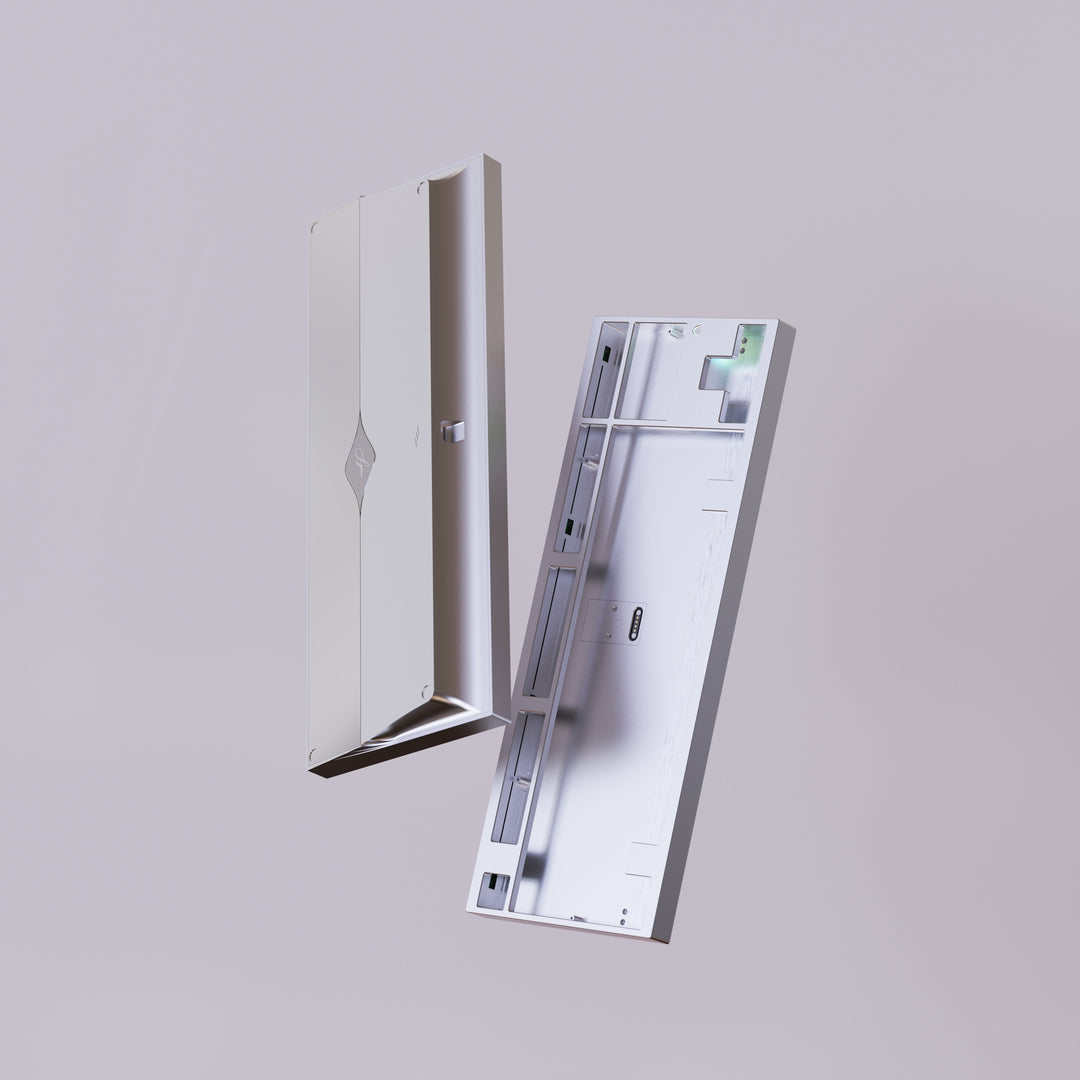

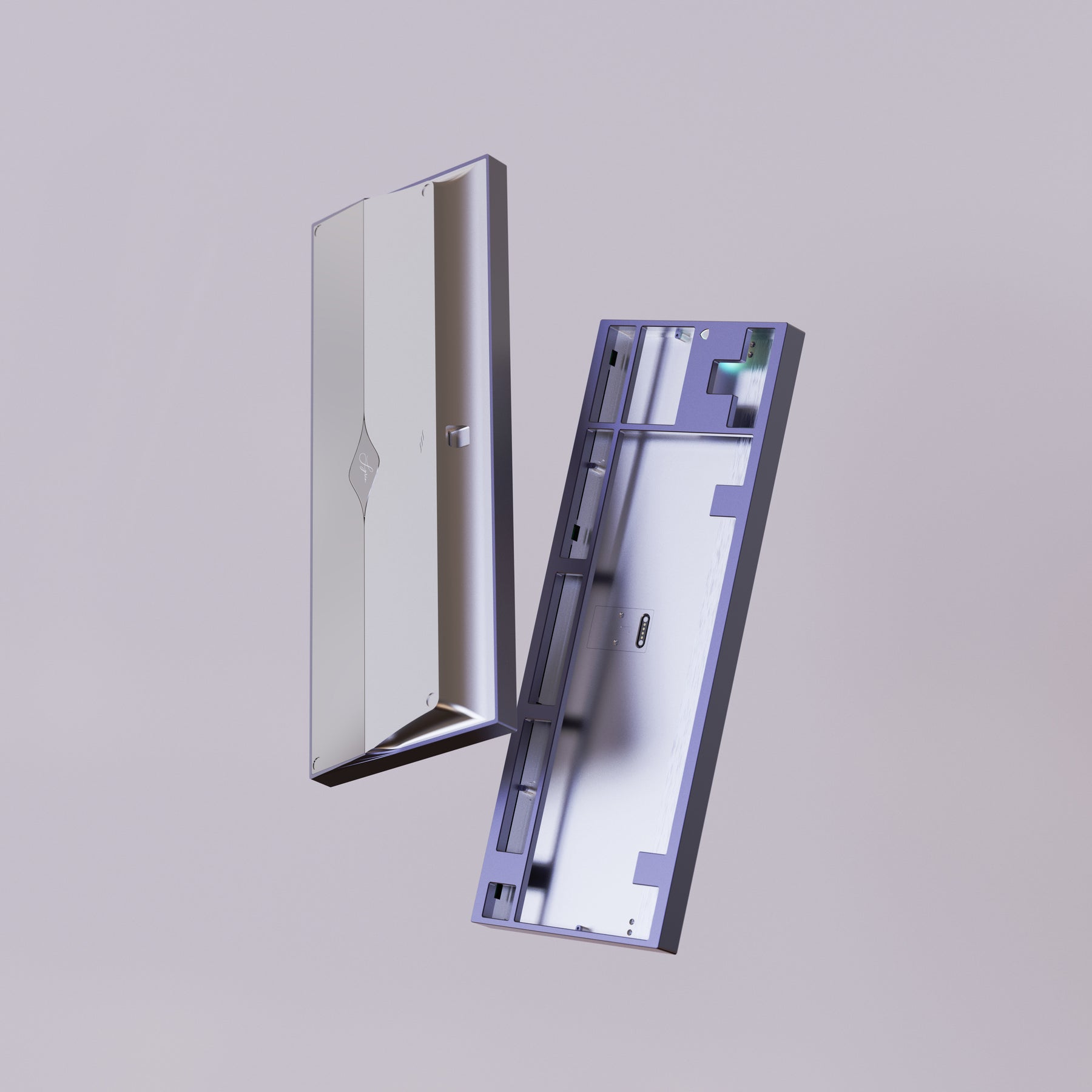

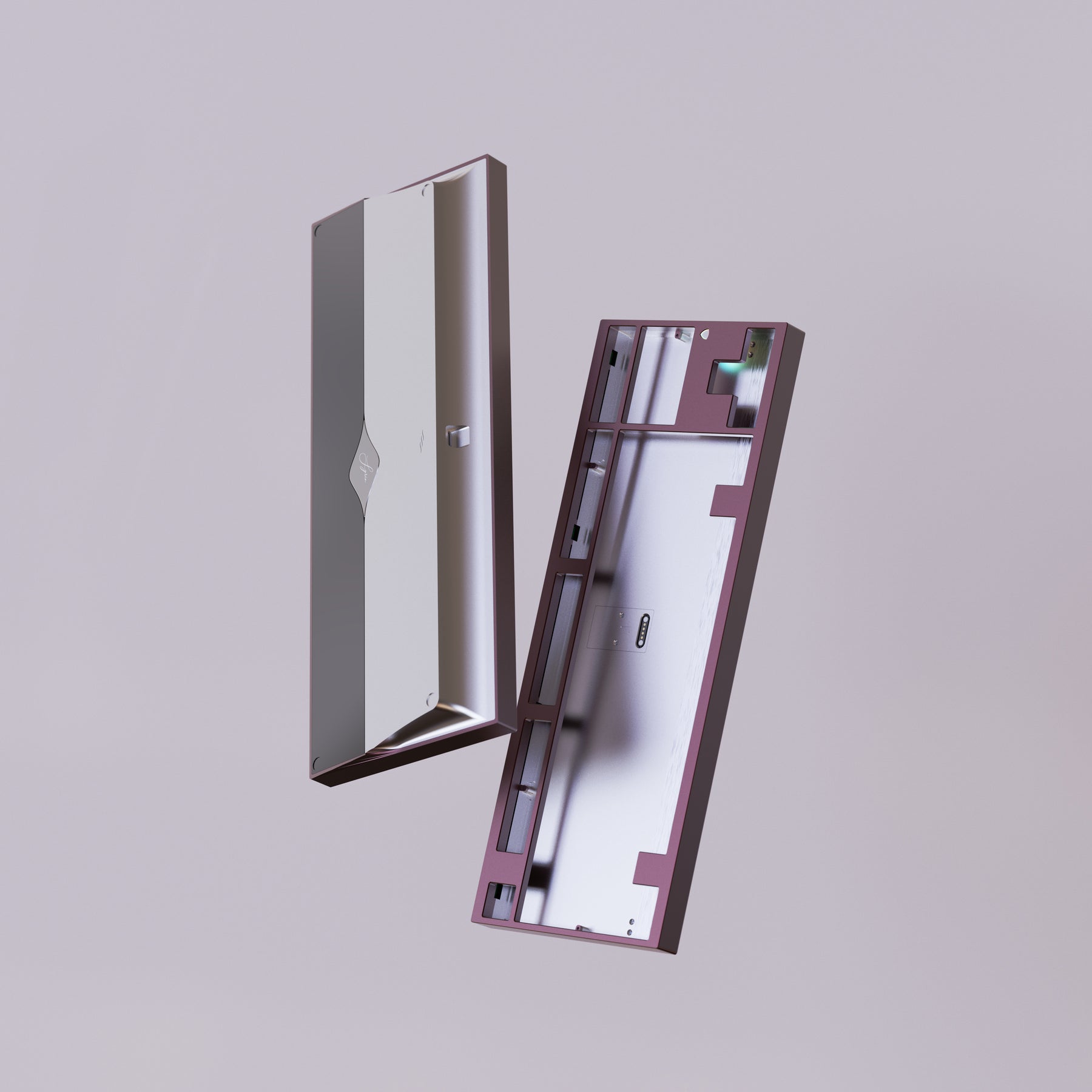

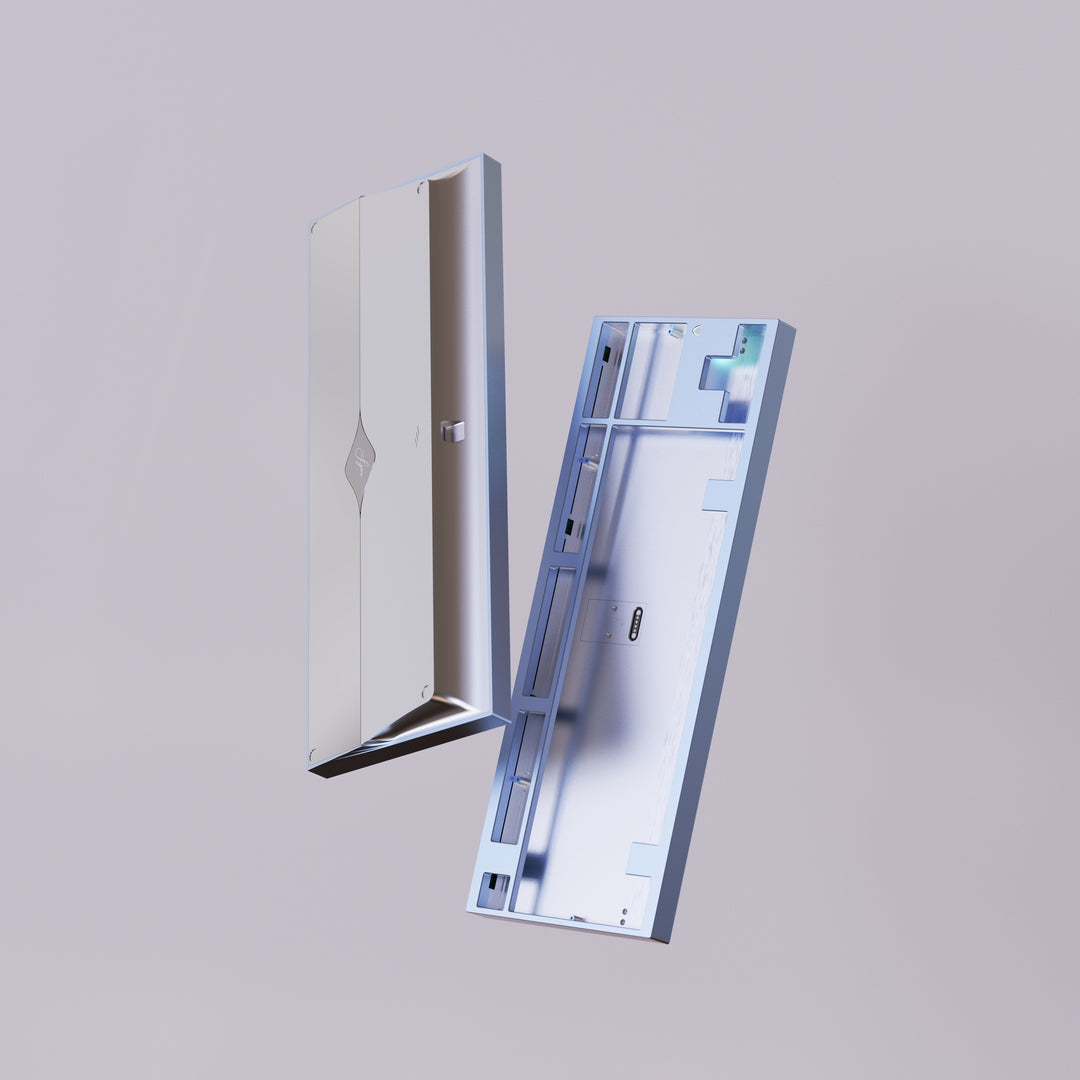

Syrin TKL
by Rien
Post edited by Click Clack



The design inspiration of this keyboard comes from "reeds" found in nature.





Introduction



We often see it by the lake or beside the river. Its branches stand upright upwards while its leaves hang downwards. When the wind blows, its posture is particularly beautiful. We believe this state is suitable to be displayed on the side of the keyboard.






Design




Due to the limitations of processing technology and production costs, we designed the sides of the keyboard as multiple small arcs, and protruded the lines at the junction points to present the elegance of reeds. At the same time, the rear end of the keyboard is designed with an open structure, creating a tall and upright posture like reeds.





The conventional way of handling keyboard weight distribution is to place the weight at the top, but this results in an unbalanced keyboard with a heavy top and a light bottom.
During the design phase, we aimed for visual harmony in the keyboard and to achieve a weight ratio of 50:50 for the upper and lower parts of the keyboard. Therefore, the weight was placed at the bottom of the keyboard's back.




By rotating the lines on the side, a "island" is formed at the bottom. Use rounded corners to smooth out the lines to make them resemble ripples of water.





We adopted a concealed screw design and used magnetic FPC, which made the keyboard more streamlined and reduced the assembly complexity.





Structure and Layout

Exploded View:


The fixation methods of the keyboard are GASKET and TOP.




Customize two types of silicone covers to enable the switching between GAS and TOP.






The FR4 diaphragms are isolated within the frame walls to ensure a smooth interior space for the keyboard, reduce sound rebound, and leave a gap to counteract the internal cavity sound.



PCB Layout:

Hot-swap



Solder:



Shell Layout:

HHKB:


WKL:

and WK.

Component parts:

Shell (Shell, Weight, Sign plate)
PCB (mother board and magnet daughter board)
Pate (Alu/PC/FR4)
Poron
Silicone gasket
Other accessories


Specifications

Size: 356.2x135.6x32.4mm
Front Height: 17mm
Slope gradient: 8°
PCB: Hotswap or solder with VIA.




Internal Weight Design Changes:




Weight Colors:



Stainless Steel (PVD Silver):


Stainless Steel (Matte Silver):


Stainless Steel (PVD Black):


Stainless Steel (Stone-washed):
